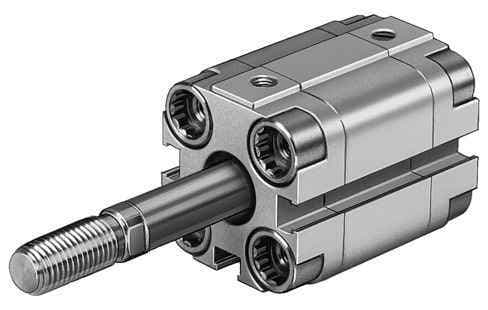

Proximity Switch DetectionPosition detection via proximity switch ensures precise control and monitoring of the cylinder's movement.
5
Compressed Air Compatibility
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
20mm
Piston diameter
16 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Single-acting Pulling
Piston rod end
External thread
Compatible with compressed air to ISO 8573-1:2010, ensuring reliable performance in various industrial environments.
6
Corrosion ResistanceFeatures a corrosion resistance class of CRC 2, providing moderate corrosion stress protection.
7
Material QualityConstructed with high-alloy stainless steel for the piston rod and wrought aluminium alloy for the cylinder barrel, ensuring durability and longevity.
8
Operating Pressure RangeOperates within a pressure range of 1.3 to 10 bar, making it versatile for various applications.
9
Lubricated OperationAllows for lubricated operation, which is required for optimal performance, extending the lifespan of the cylinder.
10
Ambient Temperature RangeSuitable for ambient temperatures ranging from -20°C to 80°C, ensuring reliable operation in a wide range of environments.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991204
Variants
Piston rod at one end
Operating pressure
18.85psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
