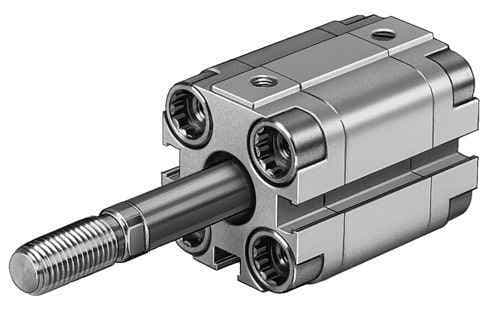

Festo AEVUZ-16-5-A-P-A: Compact, high-precision air cylinder with elastic cushioning and high-alloy stainless steel piston rod, suitable for moderate corrosion applications.
Product Modelaevuz-16-5-a-p-a
Material Number157257
Product ID4322
Stock on Request
Last updated: 8/29/2026
Key Features
1
High Precision and ReliabilityThe Festo AEVUZ-16-5-A-P-A air cylinder ensures precise operation with its elastic cushioning rings at both ends, providing a smooth and consistent motion.
2
Durable ConstructionMade with high-alloy stainless steel for the piston rod, this cylinder offers excellent durability and resistance to wear and tear.
3
Optional Mounting PositionsThe cylinder can be mounted in various positions, offering flexibility in installation and integration into different systems.
4
Moderate Corrosion ResistanceWith a corrosion resistance class of CRC 2, this cylinder is suitable for applications where moderate corrosion stress is expected.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
5mm
Piston diameter
16 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Single-acting Pulling
Piston rod end
External thread
Efficient OperationOperating pressures up to 1 MPa (10 bar) ensure efficient operation in a variety of pneumatic systems, making it versatile for various industrial applications.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991204
Variants
Piston rod at one end
Operating pressure
18.85psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
0.1J
Theoretical force at 6 bar, advancing
81N
Moving mass at 0 mm stroke
12g
Additional moving mass per 10 mm stroke
4g
Basic weight with 0 mm stroke
89g
Additional weight per 10 mm stroke
15g
Type of mounting
Optionally: With through-hole With accessories
Pneumatic connection
M5
Flange screws material
High-alloy stainless steel
Cover material
Wrought aluminum alloy
Material of dynamic seals
NBR TPE-U(PU)
Piston rod material
High-alloy stainless steel
Material of cylinder barrel
Wrought aluminum alloy
Manufacturer ID
157257
