Proximity Sensing CapabilityThe AEVUZ-12-5-A-P-A is specifically designed for proximity sensing applications, making it an ideal choice for precise positioning and detection.
2
Compact DesignWith a compact design, this cylinder is perfect for applications where space is limited, ensuring efficient use of space without compromising performance.
3
Flexible CushioningThe flexible cushioning rings/plates at both ends provide a smooth and reliable operation, reducing wear and tear on the cylinder.
4
Single-Acting Pulling ActionDesigned for single-acting pulling action, this cylinder is versatile and can be used in a variety of applications where pulling force is required.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
5mm
Piston diameter
12 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Single-acting Pulling
Piston rod end
External thread
Versatile Mounting PositionsThe AEVUZ-12-5-A-P-A can be mounted in any position, offering flexibility in installation and use, making it suitable for a wide range of industrial applications.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991204
Variants
Piston rod at one end
Operating pressure
21.75psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
0.07J
Theoretical force at 6 bar, advancing
42N
Moving mass at 0 mm stroke
8g
Additional moving mass per 10 mm stroke
2g
Basic weight with 0 mm stroke
87g
Additional weight per 10 mm stroke
15g
Type of mounting
Optionally: With through-hole With accessories
Pneumatic connection
M5
Flange screws material
High-alloy stainless steel
Cover material
Wrought aluminum alloy
Material of dynamic seals
NBR TPE-U(PU)
Piston rod material
High-alloy stainless steel
Material of cylinder barrel
Wrought aluminum alloy
Manufacturer ID
157252

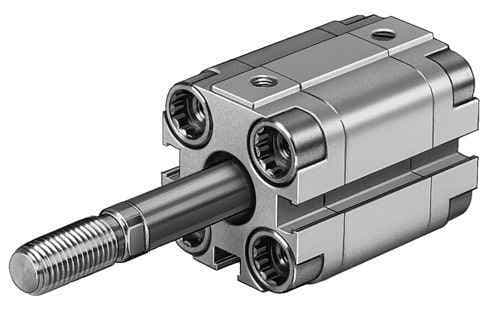

FESTO AEVUZ-12-5-A-P-A Compact Cylinder for Proximity Sensing | INDSLT
