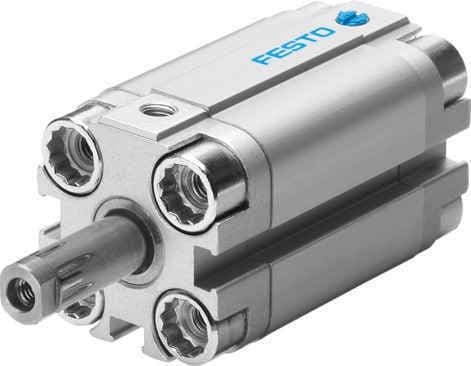

aevuz-20-25-p-a

Name: aevuz-20-25-p-a
Brand: FESTO
SKU: aevuz-20-25-p-a

The Festo AEVUZ-20-25-P-A compact air cylinder is designed for high-performance applications, offering a 25 mm stroke and a 20 mm piston diameter. It features high-alloy stainless steel piston rods and galvanized flange screws for durability and corrosion resistance. Suitable for single-action operations with flexible cushioning rings/plates at both ends, this cylinder ensures smooth and efficient movement.

Product Modelaevuz-20-25-p-a

Material Number157220

Product ID4288

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
High-Performance DesignThe Festo AEVUZ-20-25-P-A is engineered for high-performance applications, ensuring reliable and efficient operation in various automation tasks.
2
Durable MaterialsEquipped with high-alloy stainless steel piston rods and galvanized flange screws, this cylinder offers superior durability and resistance to corrosion.
3
Flexible CushioningFeaturing flexible cushioning rings/plates at both ends, the AEVUZ-20-25-P-A provides smooth and controlled movement, reducing wear and tear on the cylinder.
4
Versatile MountingWith an optional mounting position, this compact air cylinder can be easily integrated into various automation systems, offering flexibility in installation.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

25mm

Piston diameter

20 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Single-acting Pulling

Piston rod end

Internal thread

Efficient OperationDesigned for single-action operations, the AEVUZ-20-25-P-A is perfect for applications requiring precise and controlled movement, such as proximity sensing and pulling actions.

Position sensing

For proximity sensor

Symbol

00991204

Variants

Piston rod at one end

Operating pressure

14.5psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.14J

Theoretical force at 6 bar, advancing

123N

Moving mass at 0 mm stroke

20g

Additional moving mass per 10 mm stroke

Basic weight with 0 mm stroke

149g

Additional weight per 10 mm stroke

23g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

Steel, galvanized

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

157220
