aevuz-16-25-p-a

Name: aevuz-16-25-p-a
Brand: FESTO
SKU: aevuz-16-25-p-a

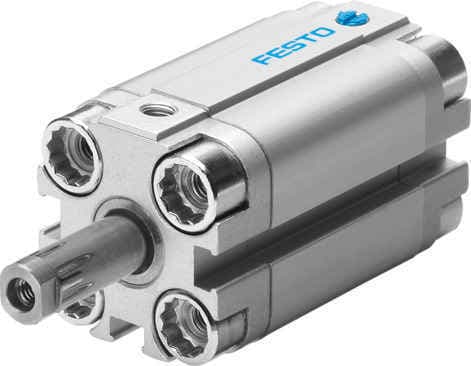

The Festo AEVUZ-16-25-P-A is a compact pneumatic cylinder designed for precise automation tasks. With a 16 mm piston diameter and 25 mm stroke, it offers reliable performance and efficient operation. Equipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth and controlled movements.

Product Modelaevuz-16-25-p-a

Material Number157215

Product ID4283

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Compact DesignThe AEVUZ-16-25-P-A is engineered to be compact, making it ideal for space-constrained automation applications. Its compact size allows for easier integration into various systems.
2
Precise MovementWith a 16 mm piston diameter and 25 mm stroke, this cylinder provides precise movement and control, ensuring accurate positioning in your automation tasks.
3
Elastic CushioningThe cylinder features elastic cushioning rings/plates at both ends, which absorb shocks and provide smooth operation. This feature enhances the overall performance and longevity of the cylinder.
4
Versatile MountingThe AEVUZ-16-25-P-A offers optional mounting positions, allowing for flexible installation in different applications. This versatility makes it a versatile solution for various automation needs.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

25mm

Piston diameter

16 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Single-acting Pulling

Piston rod end

Internal thread

Reliable PerformanceDesigned with high-quality components, the AEVUZ-16-25-P-A delivers reliable performance under various operating conditions. Its robust construction ensures consistent operation over time, making it a trusted choice for automation tasks.

Position sensing

For proximity sensor

Symbol

00991204

Variants

Piston rod at one end

Operating pressure

18.85psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.1J

Theoretical force at 6 bar, advancing

81N

Moving mass at 0 mm stroke

12g

Additional moving mass per 10 mm stroke

Basic weight with 0 mm stroke

89g

Additional weight per 10 mm stroke

15g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

High-alloy stainless steel

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

157215
