aevuz-16-10-p-a

Name: aevuz-16-10-p-a
Brand: FESTO
SKU: aevuz-16-10-p-a

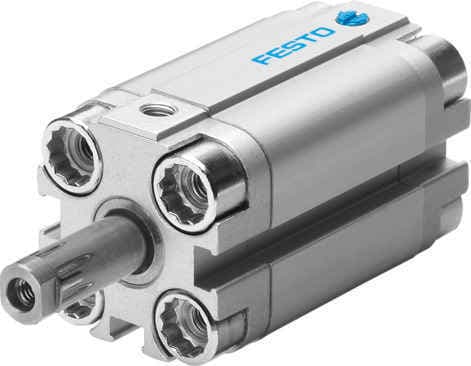

The Festo AEVUZ-16-10-P-A compact cylinder offers a 10mm stroke and 16mm piston diameter with elastic cushioning rings. Suitable for single-acting pulling applications with compressed air.

Product Modelaevuz-16-10-p-a

Material Number157212

Product ID4280

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Compact DesignThe Festo AEVUZ-16-10-P-A is designed to be compact, making it ideal for space-constrained applications. Its small footprint allows for efficient use in a variety of settings.
2
Elastic CushioningEquipped with elastic cushioning rings at both ends, this cylinder provides smooth operation and reduces wear and tear, ensuring longer lifespan and better performance.
3
Versatile MountingThe cylinder offers optional mounting positions, allowing for flexibility in installation. Whether you need to mount it with a through-hole or use accessories, the AEVUZ-16-10-P-A can be easily integrated into your system.
4
Single-Acting Pulling ActionDesigned for single-acting pulling applications, this cylinder is perfect for tasks that require a pulling force. Its straightforward operation makes it easy to integrate into your automation system.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

10mm

Piston diameter

16 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Single-acting Pulling

Piston rod end

Internal thread

High-Quality MaterialsConstructed with high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, the AEVUZ-16-10-P-A ensures durability and resistance to corrosion. The use of NBR and TPE-U(PU) dynamic seals further enhances its reliability.

Position DetectionEquipped with a proximity switch for position detection, the AEVUZ-16-10-P-A provides precise control over the cylinder’s movement. This feature ensures accurate positioning and reliable operation in your application.

Operating Pressure RangeThe cylinder operates within a wide pressure range of 1.3 to 10 bar, making it adaptable to various pneumatic systems. This flexibility allows you to use the AEVUZ-16-10-P-A in a wide range of applications.

Corrosion ResistanceWith a corrosion resistance class of CRC 2 – Moderate corrosion stress, the AEVUZ-16-10-P-A is suitable for environments where moderate corrosion resistance is required. This ensures the cylinder remains functional even in challenging conditions.

Impact EnergyThe AEVUZ-16-10-P-A has an impact energy of 0.1 J in the end positions, which helps in reducing the risk of damage during operation. This feature ensures the longevity of the cylinder and the overall system.

Operating MediumThe cylinder operates with compressed air in accordance with ISO 8573-1:2010 [7:4:4], ensuring it meets international standards for air quality. This guarantees reliable performance and longevity in your application.

1Lubricated OperationLubricated operation is possible with the AEVUZ-16-10-P-A, but it is always required for further operation. This ensures smooth movement and reduces wear on the components, extending the lifespan of the cylinder.

1Ambient Temperature RangeThe AEVUZ-16-10-P-A operates within an ambient temperature range of -20°C to 80°C, making it suitable for a variety of environments. This flexibility ensures the cylinder can be used in different settings without compromising its performance.

1Theoretical ForceAt an operating pressure of 0.6 MPa (6 bar, 87 psi), the AEVUZ-16-10-P-A delivers a theoretical force of 81 N. This force is sufficient for most single-acting pulling applications, making it a reliable choice for your automation needs.

1Moving MassThe moving mass of the piston rod is 12g for a 0mm stroke, and it increases by 4g for every additional 10mm stroke. This design ensures smooth movement and precise control over the cylinder’s operation.

1Basic and Additional WeightThe basic weight of the cylinder is 89g for a 0mm stroke, and it increases by 15g for every additional 10mm stroke. This weight distribution ensures stability and reliability in the operation of the AEVUZ-16-10-P-A.

1Material SelectionThe AEVUZ-16-10-P-A is constructed with high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel. The use of NBR and TPE-U(PU) dynamic seals further enhances its reliability and durability.

1Pneumatic ConnectionThe cylinder features a pneumatic connection of M5, which is commonly used in pneumatic systems. This ensures easy integration with other components and systems, making it a versatile choice for your automation needs.

1Position Detection via Proximity SwitchThe AEVUZ-16-10-P-A is equipped with a proximity switch for position detection, providing precise control over the cylinder’s movement. This feature ensures accurate positioning and reliable operation in your application.

1Variants and DesignThe cylinder is available with a piston rod at one end, offering flexibility in design and operation. Its piston design and piston rod design ensure smooth movement and precise control over the cylinder’s operation.

20. Corrosion Resistance ClassThe AEVUZ-16-10-P-A has a corrosion resistance class of CRC 2 – Moderate corrosion stress, making it suitable for environments where moderate corrosion resistance is required. This ensures the cylinder remains functional even in challenging conditions.

2Impact Energy in End PositionsThe cylinder has an impact energy of 0.1 J in the end positions, which helps in reducing the risk of damage during operation. This feature ensures the longevity of the cylinder and the overall system.

2Operating Pressure RangeThe AEVUZ-16-10-P-A operates within a wide pressure range of 1.3 to 10 bar, making it adaptable to various pneumatic systems. This flexibility allows you to use the AEVUZ-16-10-P-A in a wide range of applications.

2Operating MediumThe cylinder operates with compressed air in accordance with ISO 8573-1:2010 [7:4:4], ensuring it meets international standards for air quality. This guarantees reliable performance and longevity in your application.

2Lubricated OperationLubricated operation is possible with the AEVUZ-16-10-P-A, but it is always required for further operation. This ensures smooth movement and reduces wear on the components, extending the lifespan of the cylinder.

2Ambient Temperature RangeThe AEVUZ-16-10-P-A operates within an ambient temperature range of -20°C to 80°C, making it suitable for a variety of environments. This flexibility ensures the cylinder can be used in different settings without compromising its performance.

2Theoretical ForceAt an operating pressure of 0.6 MPa (6 bar, 87 psi), the AEVUZ-16-10-P-A delivers a theoretical force of 81 N. This force is sufficient for most single-acting pulling applications, making it a reliable choice for your automation needs.

2Moving MassThe moving mass of the piston rod is 12g for a 0mm stroke, and it increases by 4g for every additional 10mm stroke. This design ensures smooth movement and precise control over the cylinder’s operation.

2Basic and Additional WeightThe basic weight of the cylinder is 89g for a 0mm stroke, and it increases by 15g for every additional 10mm stroke. This weight distribution ensures stability and reliability in the operation of the AEVUZ-16-10-P-A.

2Material SelectionThe AEVUZ-16-10-P-A is constructed with high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel. The use of NBR and TPE-U(PU) dynamic seals further enhances its reliability and durability.

30. Pneumatic ConnectionThe cylinder features a pneumatic connection of M5, which is commonly used in pneumatic systems. This ensures easy integration with other components and systems, making it a versatile choice for your automation needs.

3Position Detection via Proximity SwitchThe AEVUZ-16-10-P-A is equipped with a proximity switch for position detection, providing precise control over the cylinder’s movement. This feature ensures accurate positioning and reliable operation in your application.

3Variants and DesignThe cylinder is available with a piston rod at one end, offering flexibility in design and operation. Its piston design and piston rod design ensure smooth movement and precise control over the cylinder’s operation.

3Corrosion Resistance ClassThe AEVUZ-16-10-P-A has a corrosion resistance class of CRC 2 – Moderate corrosion stress, making it suitable for environments where moderate corrosion resistance is required. This ensures the cylinder remains functional even in challenging conditions.

3Impact Energy in End PositionsThe cylinder has an impact energy of 0.1 J in the end positions, which helps in reducing the risk of damage during operation. This feature ensures the longevity of the cylinder and the overall system.

3Operating Pressure RangeThe AEVUZ-16-10-P-A operates within a wide pressure range of 1.3 to 10 bar, making it adaptable to various pneumatic systems. This flexibility allows you to use the AEVUZ-16-10-P-A in a wide range of applications.

3Operating MediumThe cylinder operates with compressed air in accordance with ISO 8573-1:2010 [7:4:4], ensuring it meets international standards for air quality. This guarantees reliable performance and longevity in your application.

3Lubricated OperationLubricated operation is possible with the AEVUZ-16-10-P-A, but it is always required for further operation. This ensures smooth movement and reduces wear on the components, extending the lifespan of the cylinder.

3Ambient Temperature RangeThe AEVUZ-16-10-P-A operates within an ambient temperature range of -20°C to 80°C, making it suitable for a variety of environments. This flexibility ensures the cylinder can be used in different settings without compromising its performance.

3Theoretical ForceAt an operating pressure of 0.6 MPa (6 bar, 87 psi), the AEVUZ-16-10-P-A delivers a theoretical force of 81 N. This force is sufficient for most single-acting pulling applications, making it a reliable choice for your automation needs.

40. Moving MassThe moving mass of the piston rod is 12g for a 0mm stroke, and it increases by 4g for every additional 10mm stroke. This design ensures smooth movement and precise control over the cylinder’s operation.

4Basic and Additional WeightThe basic weight of the cylinder is 89g for a 0mm stroke, and it increases by 15g for every additional 10mm stroke. This weight distribution ensures stability and reliability in the operation of the AEVUZ-16-10-P-A.

4Material SelectionThe AEVUZ-16-10-P-A is constructed with high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel. The use of NBR and TPE-U(PU) dynamic seals further enhances its reliability and durability.

4Pneumatic ConnectionThe cylinder features a pneumatic connection of M5, which is commonly used in pneumatic systems. This ensures easy integration with other components and systems, making it a versatile choice for your automation needs.

4Position Detection via Proximity SwitchThe AEVUZ-16-10-P-A is equipped with a proximity switch for position detection, providing precise control over the cylinder’s movement. This feature ensures accurate positioning and reliable operation in your application.

4Variants and DesignThe cylinder is available with a piston rod at one end, offering flexibility in design and operation. Its piston design and piston rod design ensure smooth movement and precise control over the cylinder’s operation.

4Corrosion Resistance ClassThe AEVUZ-16-10-P-A has a corrosion resistance class of CRC 2 – Moderate corrosion stress, making it suitable for environments where moderate corrosion resistance is required. This ensures the cylinder remains functional even in challenging conditions.

4Impact Energy in End PositionsThe cylinder has an impact energy of 0.1 J in the end positions, which helps in reducing the risk of damage during operation. This feature ensures the longevity of the cylinder and the overall system.

4Operating Pressure RangeThe AEVUZ-16-10-P-A operates within a wide pressure range of 1.3 to 10 bar, making it adaptable to various pneumatic systems. This flexibility allows you to use the AEVUZ-16-10-P-A in a wide range of applications.

4Operating MediumThe cylinder operates with compressed air in accordance with ISO 8573-1:2010 [7:4:4], ensuring it meets international standards for air quality. This guarantees reliable performance and longevity in your application.

50. Lubricated OperationLubricated operation is possible with the AEVUZ-16-10-P-A, but it is always required for further operation. This ensures smooth movement and reduces wear on the components, extending the lifespan of the cylinder.

5Ambient Temperature RangeThe AEVUZ-16-10-P-A operates within an ambient temperature range of -20°C to 80°C, making it suitable for a variety of environments. This flexibility ensures the cylinder can be used in different settings without compromising its performance.

5Theoretical ForceAt an operating pressure of 0.6 MPa (6 bar, 87 psi), the AEVUZ-16-10-P-A delivers a theoretical force of 81 N. This force is sufficient for most single-acting pulling applications, making it a reliable choice for your automation needs.

5Moving MassThe moving mass of the piston rod is 12g for a 0mm stroke, and it increases by 4g for every additional 10mm stroke. This design ensures smooth movement and precise control over the cylinder’s operation.

5Basic and Additional WeightThe basic weight of the cylinder is 89g for a 0mm stroke, and it increases by 15g for every additional 10mm stroke. This weight distribution ensures stability and reliability in the operation of the AEVUZ-16-10-P-A.

5Material SelectionThe AEVUZ-16-10-P-A is constructed with high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel. The use of NBR and TPE-U(PU) dynamic seals further enhances its reliability and durability.

5Pneumatic ConnectionThe cylinder features a pneumatic connection of M5, which is commonly used in pneumatic systems. This ensures easy integration with other components and systems, making it a versatile choice for your automation needs.

5Position Detection via Proximity SwitchThe AEVUZ-16-10-P-A is equipped with a proximity switch for position detection, providing precise control over the cylinder’s movement. This feature ensures accurate positioning and reliable operation in your application.

5Variants and DesignThe cylinder is available with a piston rod at one end, offering flexibility in design and operation. Its piston design and piston rod design ensure smooth movement and precise control over the cylinder’s operation.

5Corrosion Resistance ClassThe AEVUZ-16-10-P-A has a corrosion resistance class of CRC 2 – Moderate corrosion stress, making it suitable for environments where moderate corrosion resistance is required. This ensures the cylinder remains functional even in challenging conditions.

60. Impact Energy in End PositionsThe cylinder has an impact energy of 0.1 J in the end positions, which helps in reducing the risk of damage during operation. This feature ensures the longevity of the cylinder and the overall system.

6Operating Pressure RangeThe AEVUZ-16-10-P-A operates within a wide pressure range of 1.3 to 10 bar, making it adaptable to various pneumatic systems. This flexibility allows you to use the AEVUZ-16-10-P-A in a wide range of applications.

6Operating MediumThe cylinder operates with compressed air in accordance with ISO 8573-1:2010 [7:4:4], ensuring it meets international standards for air quality. This guarantees reliable performance and longevity in your application.

6Lubricated OperationLubricated operation is possible with the AEVUZ-16-10-P-A, but it is always required for further operation. This ensures smooth movement and reduces wear on the components, extending the lifespan of the cylinder.

6Ambient Temperature RangeThe AEVUZ-16-10-P-A operates within an ambient temperature range of -20°C to 80°C, making it suitable for a variety of environments. This flexibility ensures the cylinder can be used in different settings without compromising its performance.

6Theoretical ForceAt an operating pressure of 0.6 MPa (6 bar, 87 psi), the AEVUZ-16-10-P-A delivers a theoretical force of 81 N. This force is sufficient for most single-acting pulling applications, making it a reliable choice for your automation needs.

6Moving MassThe moving mass of the piston rod is 12g for a 0mm stroke, and it increases by 4g for every additional 10mm stroke. This design ensures smooth movement and precise control over the cylinder’s operation.

6Basic and Additional WeightThe basic weight of the cylinder is 89g for a 0mm stroke, and it increases by 15g for every additional 10mm stroke. This weight distribution ensures stability and reliability in the operation of the AEVUZ-16-10-P-A.

6Material SelectionThe AEVUZ-16-10-P-A is constructed with high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel. The use of NBR and TPE-U(PU) dynamic seals further enhances its reliability and durability.

Position sensing

For proximity sensor

Symbol

00991204

Variants

Piston rod at one end

Operating pressure

18.85psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.1J

Theoretical force at 6 bar, advancing

81N

Moving mass at 0 mm stroke

12g

Additional moving mass per 10 mm stroke

Basic weight with 0 mm stroke

89g

Additional weight per 10 mm stroke

15g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

High-alloy stainless steel

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

157212
