aevuz-12-10-p-a

Name: aevuz-12-10-p-a
Brand: FESTO
SKU: aevuz-12-10-p-a

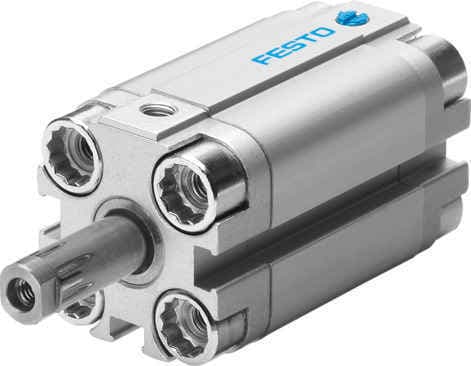

The Festo AEVUZ-12-10-P-A is a compact, single-acting pneumatic cylinder designed for proximity sensing applications. It features a 10mm stroke, 12mm piston diameter, and elastic cushioning rings/plates at both ends. This cylinder is ideal for precise and efficient automation tasks, ensuring reliable performance in various industrial settings.

Product Modelaevuz-12-10-p-a

Material Number157207

Product ID4278

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Compact DesignThe Festo AEVUZ-12-10-P-A is designed to be compact, making it ideal for space-constrained applications. Its compact size allows for easy integration into various automation systems, enhancing overall system efficiency.
2
Proximity Sensing CapabilityEquipped with proximity sensing capabilities, this cylinder can detect its position accurately. This feature is particularly useful in applications requiring precise control and monitoring.
3
Elastic CushioningThe cylinder features elastic cushioning rings/plates at both ends, providing a smooth and controlled motion. This reduces wear and tear on the cylinder, extending its lifespan and ensuring consistent performance.
4
Versatile Mounting OptionsThe AEVUZ-12-10-P-A offers optional mounting positions, allowing for flexibility in installation. This versatility makes it suitable for a wide range of applications, from simple to complex automation tasks.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

10mm

Piston diameter

12 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Single-acting Pulling

Piston rod end

Internal thread

High-Quality MaterialsConstructed from high-quality materials such as high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, this cylinder ensures durability and resistance to corrosion. The use of NBR and TPE-U(PU) dynamic seals further enhances its reliability.

Operating Pressure RangeThe cylinder operates within a pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar), making it suitable for a variety of pneumatic systems. This range allows for flexible operation in different industrial environments.

Easy IntegrationThe Festo AEVUZ-12-10-P-A is designed to integrate seamlessly with Festo's comprehensive product range, including valves, motors, and controllers. This integration simplifies the selection and configuration process, ensuring a streamlined automation solution.

Fast DeliveryAs part of Festo's commitment to fast delivery, the AEVUZ-12-10-P-A is ready for dispatch in just 24 hours. This ensures that customers can quickly receive the products they need, minimizing downtime and optimizing production schedules.

Technical SupportFesto provides comprehensive technical support, including detailed documentation and engineering tools. This support ensures that customers can effectively utilize the cylinder in their specific applications, maximizing its performance and efficiency.

Global AvailabilityThe Festo AEVUZ-12-10-P-A is available worldwide, making it accessible to customers across different regions. This global availability ensures that customers can easily source the products they need, regardless of their location.

Position sensing

For proximity sensor

Symbol

00991204

Variants

Piston rod at one end

Operating pressure

21.75psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.07J

Theoretical force at 6 bar, advancing

42N

Moving mass at 0 mm stroke

Additional moving mass per 10 mm stroke

Basic weight with 0 mm stroke

87g

Additional weight per 10 mm stroke

15g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

High-alloy stainless steel

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

157207
