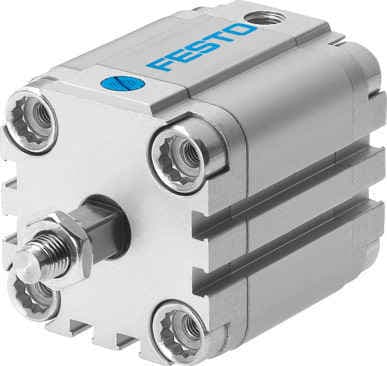

Short Description: Festo AEVULQ-63-15-A-P-A compact single-acting pneumatic cylinder with 63mm piston diameter, 15mm stroke length, and elastic cushioning for smooth operation.
Product Modelaevulq-63-15-a-p-a
Material Number157103
Product ID4266
Stock on Request
Last updated: 8/29/2026
Key Features
1
Precision and ReliabilityThe Festo AEVULQ-63-15-A-P-A is designed for precise and reliable operation, ensuring consistent performance in a variety of industrial applications.
2
Compact DesignWith a compact design, this cylinder is ideal for space-constrained environments, making it perfect for integration into complex machinery systems.
3
Elastic CushioningEquipped with elastic cushioning rings at both ends, this cylinder provides smooth and controlled movement, reducing wear and tear on the system.
4
Versatile OperationThe single-acting operation allows for pushing motion, making it suitable for applications requiring linear movement in one direction.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
15mm
Piston diameter
63 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Pushing Single-acting
Piston rod end
External thread
Durable ConstructionConstructed from high-quality materials, including high-alloy steel for the piston rod and wrought aluminum alloy for the cylinder barrel, ensuring durability and longevity.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991729
Variants
Piston rod at one end
Protection against torsion/guide
Square piston rod
Operating pressure
14.5psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
