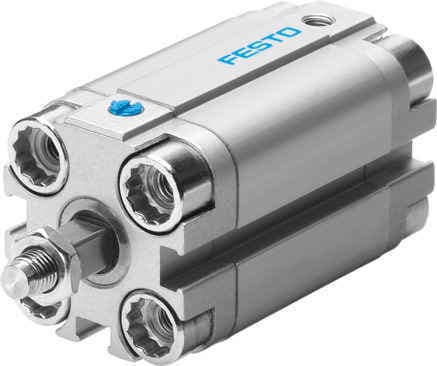

Compact cylinder for proximity sensing, secured against rotation with a square piston rod, 5mm stroke, 25mm piston diameter, and flexible cushioning rings at both ends.
Product Modelaevulq-25-5-a-p-a
Material Number157083
Product ID4245
Stock on Request
Last updated: 8/29/2026
Key Features
1
Proximity Sensing CapabilityThe Festo AEVULQ-25-5-A-P-A is specifically designed for proximity sensing, ensuring accurate detection and precise operation in various applications.
2
Secure Rotation PreventionThe square piston rod provides a secure mechanism to prevent rotation, ensuring consistent and reliable performance in your pneumatic systems.
3
Flexible CushioningEquipped with flexible cushioning rings at both ends, this cylinder provides smooth operation and reduces wear and tear on the system.
4
Versatile Mounting OptionsThe cylinder offers any mounting position, providing flexibility in installation and integration into your existing setup.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
5mm
Piston diameter
25 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Pushing Single-acting
Piston rod end
External thread
High-Quality MaterialsConstructed from high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, ensuring durability and resistance to corrosion.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991729
Variants
Piston rod at one end
Protection against torsion/guide
Square piston rod
Operating pressure
14.5psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
0.1J
Theoretical force at 6 bar, advancing
269N
Moving mass at 0 mm stroke
26g
Additional moving mass per 10 mm stroke
6g
Basic weight with 0 mm stroke
180g
Additional weight per 10 mm stroke
28g
Type of mounting
Optionally: With through-hole With accessories
Pneumatic connection
M5
Flange screws material
Steel, galvanized
Cover material
Wrought aluminum alloy
Material of dynamic seals
NBR TPE-U(PU)
Piston rod material
High-alloy stainless steel
Material of cylinder barrel
Wrought aluminum alloy
Manufacturer ID
157083
