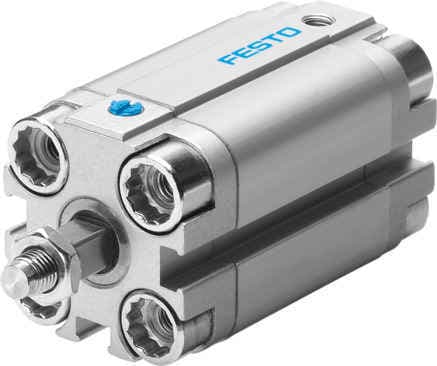

aevulq-20-15-a-p-a

Name: aevulq-20-15-a-p-a
Brand: FESTO
SKU: aevulq-20-15-a-p-a

Short Product Description: Festo AEVULQ-20-15-A-P-A compact cylinder for proximity sensing with 20 mm piston diameter, 15 mm stroke, and elastic cushioning. Suitable for various mounting positions and operating pressures up to 10 bar.

Product Modelaevulq-20-15-a-p-a

Material Number157080

Product ID4243

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Proximity Sensing CapabilityThe Festo AEVULQ-20-15-A-P-A is equipped with position sensing for proximity sensors, ensuring precise control and detection in your application.
2
Compact DesignThis compact cylinder is designed to be lightweight and space-efficient, making it ideal for applications where size is a critical factor.
3
Elastic CushioningThe cylinder features elastic cushioning rings/plates at both ends, providing smooth operation and reducing wear and tear on the components.
4
Versatile Mounting OptionsThe AEVULQ-20-15-A-P-A can be mounted in any position, offering flexibility in installation and integration into your system.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

15mm

Piston diameter

20 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Pushing Single-acting

Piston rod end

External thread

High-Pressure OperationWith an operating pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar), this cylinder is suitable for a variety of high-pressure applications, ensuring reliable performance under demanding conditions.

Material DurabilityConstructed with high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, this product offers excellent corrosion resistance and durability.

Operational FlexibilityThe cylinder can operate with or without lubrication, providing flexibility in maintenance and operation requirements. Lubricated operation is always required if chosen, ensuring smooth and efficient performance.

Temperature RangeThe AEVULQ-20-15-A-P-A operates within an ambient temperature range of -20°C to 80°C, making it suitable for a wide range of environments and applications.

Impact Energy ControlWith an impact energy of 0.14 J in the end positions, this cylinder is designed to handle moderate impacts, ensuring reliable operation even in dynamic environments.

Structural IntegrityThe sturdy design and robust materials ensure that the cylinder maintains its structural integrity under various operating conditions, providing consistent performance over time.

Position sensing

For proximity sensor

Symbol

00991729

Variants

Piston rod at one end

Protection against torsion/guide

Square piston rod

Operating pressure

14.5psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.14J

Theoretical force at 6 bar, advancing

171N

Moving mass at 0 mm stroke

20g

Additional moving mass per 10 mm stroke

Basic weight with 0 mm stroke

149g

Additional weight per 10 mm stroke

23g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

Steel, galvanized

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

157080
