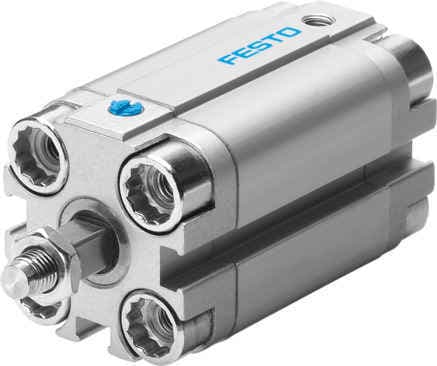

Festo AEVULQ-20-5-PA compact cylinder features 5mm stroke, 20mm piston diameter, and elastic cushioning rings/plates. Suitable for proximity sensing and various mounting positions.
Product Modelaevulq-20-5-a-p-a
Material Number157078
Product ID4241
Stock on Request
Last updated: 8/29/2026
Key Features
1
Precision Proximity SensingThe AEVULQ-20-5-PA is equipped with a proximity switch for precise position detection, ensuring accurate control in your applications.
2
Flexible Mounting OptionsThis compact cylinder offers optional mounting positions, allowing for versatile integration into your system design.
3
Elastic CushioningThe cylinder features elastic cushioning rings/plates at both ends, providing smooth operation and reducing wear and tear.
4
High-Performance OperationWith a stroke of 5mm and a piston diameter of 20mm, this cylinder delivers high theoretical forces of 188N (advance stroke) and 141N (return stroke) at 6 bar.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
5mm
Piston diameter
20 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Pushing Single-acting
Piston rod end
External thread
Durable ConstructionBuilt with high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, this cylinder ensures durability and resistance to corrosion (CRC 2).
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991729
Variants
Piston rod at one end
Protection against torsion/guide
Square piston rod
Operating pressure
14.5psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
0.14J
Theoretical force at 6 bar, advancing
171N
Moving mass at 0 mm stroke
20g
Additional moving mass per 10 mm stroke
6g
Basic weight with 0 mm stroke
149g
Additional weight per 10 mm stroke
23g
Type of mounting
Optionally: With through-hole With accessories
Pneumatic connection
M5
Flange screws material
Steel, galvanized
Cover material
Wrought aluminum alloy
Material of dynamic seals
NBR TPE-U(PU)
Piston rod material
High-alloy stainless steel
Material of cylinder barrel
Wrought aluminum alloy
Manufacturer ID
157078
