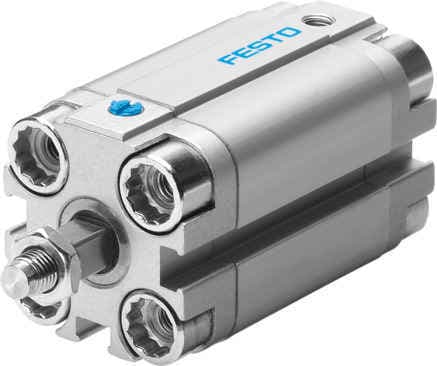

Compact cylinder for proximity sensing with 16 mm piston diameter and 25 mm stroke, ensuring precise and reliable operation in industrial settings.
Product Modelaevulq-16-25-a-p-a
Material Number157077
Product ID4240
Stock on Request
Last updated: 8/29/2026
Key Features
1
Precise Proximity SensingThe Festo AEVULQ-16-25-A-P-A is equipped with proximity sensing capabilities, allowing for accurate detection and control in your industrial processes.
2
Flexible CushioningThe cylinder features elastic cushioning rings at both ends, providing smooth operation and reducing wear and tear on the components.
3
Versatile MountingThe compact cylinder can be mounted in any position, offering flexibility in your system design and installation.
4
High-Quality MaterialsConstructed with high-alloyed stainless steel for the piston rod and wrought aluminum alloy for the cylinder tube, ensuring durability and resistance to corrosion.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
25mm
Piston diameter
16 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Pushing Single-acting
Piston rod end
External thread
Wide Operating RangeThe cylinder operates within a wide temperature range of -20°C to 80°C and supports operating pressures from 1.3 to 10 bar, making it suitable for various industrial environments.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991729
Variants
Piston rod at one end
Protection against torsion/guide
Square piston rod
Operating pressure
21.75psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
0.1J
Theoretical force at 6 bar, advancing
111N
Moving mass at 0 mm stroke
12g
Additional moving mass per 10 mm stroke
4g
Basic weight with 0 mm stroke
89g
Additional weight per 10 mm stroke
15g
Type of mounting
Optionally: With through-hole With accessories
Pneumatic connection
M5
Flange screws material
High-alloy stainless steel
Cover material
Wrought aluminum alloy
Material of dynamic seals
NBR TPE-U(PU)
Piston rod material
High-alloy stainless steel
Material of cylinder barrel
Wrought aluminum alloy
Manufacturer ID
157077
