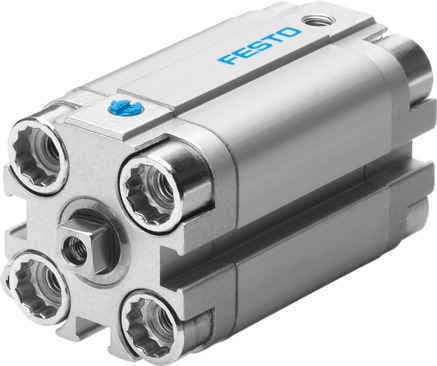

Short Description: Festo AEVULQ-25-5-P-A compact cylinder for proximity sensing with flexible cushioning rings and a square piston rod, ensuring precise control and reliability.
Product Modelaevulq-25-25-p-a
Material Number157041
Product ID4209
Stock on Request
Last updated: 8/29/2026
Key Features
1
Precise Control with Proximity SensingThe AEVULQ-25-5-P-A features proximity sensing, allowing for precise control and accurate positioning in your automation tasks.
2
Flexible Cushioning for Smooth OperationEquipped with flexible cushioning rings at both ends, this cylinder ensures smooth operation and reduces wear and tear on the system.
3
Secure Rotation with Square Piston RodThe square piston rod is designed to prevent rotation, providing a secure and reliable operation in your industrial applications.
4
Versatile Mounting OptionsThe cylinder can be mounted in any position, offering flexibility in your automation setup and allowing for easy integration into various systems.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
25mm
Piston diameter
25 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Pushing Single-acting
Piston rod end
Internal thread
High-Quality Materials and ConstructionConstructed from high-alloyed stainless steel and aluminum wrought alloy, the AEVULQ-25-5-P-A ensures durability and resistance to corrosion, making it a reliable choice for demanding industrial environments.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991729
Variants
Piston rod at one end
Protection against torsion/guide
Square piston rod
Operating pressure
14.5psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
0.1J
Theoretical force at 6 bar, advancing
269N
Moving mass at 0 mm stroke
26g
Additional moving mass per 10 mm stroke
6g
Basic weight with 0 mm stroke
180g
Additional weight per 10 mm stroke
28g
Type of mounting
Optionally: With through-hole With accessories
Pneumatic connection
M5
Flange screws material
Steel, galvanized
Cover material
Wrought aluminum alloy
Material of dynamic seals
NBR TPE-U(PU)
Piston rod material
High-alloy stainless steel
Material of cylinder barrel
Wrought aluminum alloy
Manufacturer ID
157041
