aevulq-25-20-p-a

Name: aevulq-25-20-p-a
Brand: FESTO
SKU: aevulq-25-20-p-a

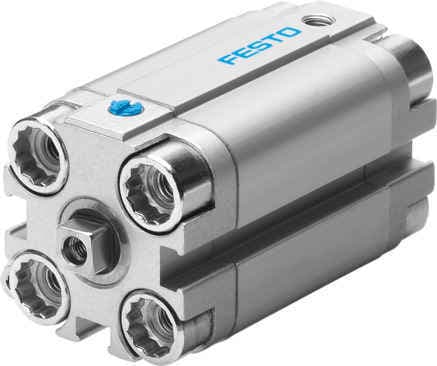

Short Product Description: Festo AEVULQ-25-20-A-P-A compact cylinder with 20mm stroke, 25mm piston diameter, and elastic cushioning. Suitable for proximity sensing and moderate corrosion environments.

Product Modelaevulq-25-20-p-a

Material Number157040

Product ID4208

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Elastic CushioningThe AEVULQ-25-20-A-P-A features elastic cushioning rings/plates at both ends, ensuring smooth operation and reducing wear on the cylinder.
2
Proximity SensingEquipped with a built-in proximity switch, this cylinder allows for precise position detection, making it ideal for applications requiring accurate control.
3
High-Alloy Stainless Steel Piston RodThe high-alloy stainless steel piston rod provides durability and resistance to corrosion, ensuring long-lasting performance in various environments.
4
Flexible Mounting OptionsThe cylinder can be mounted in any position, offering flexibility in installation and integration into different systems.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

20mm

Piston diameter

25 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Pushing Single-acting

Piston rod end

Internal thread

Wide Operating Pressure RangeOperating pressure can range from 1 to 10 bar, making it suitable for a variety of applications and operating conditions.

Position sensing

For proximity sensor

Symbol

00991729

Variants

Piston rod at one end

Protection against torsion/guide

Square piston rod

Operating pressure

14.5psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.1J

Theoretical force at 6 bar, advancing

269N

Moving mass at 0 mm stroke

26g

Additional moving mass per 10 mm stroke

Basic weight with 0 mm stroke

180g

Additional weight per 10 mm stroke

28g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

Steel, galvanized

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

157040
