aevulq-25-10-p-a

Name: aevulq-25-10-p-a
Brand: FESTO
SKU: aevulq-25-10-p-a

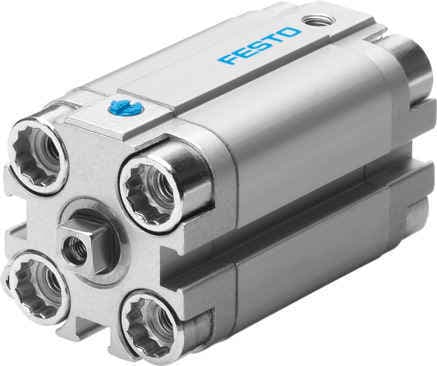

The Festo AEVULQ-25-10-P-A compact cylinder is a versatile, proximity-sensing cylinder with a 25mm piston diameter and 10mm stroke. It offers elastic cushioning and supports double-acting operation, making it suitable for various industrial applications.

Product Modelaevulq-25-10-p-a

Material Number157038

Product ID4206

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Proximity Sensing CapabilityThe AEVULQ-25-10-P-A cylinder is designed for proximity sensing, allowing for precise positioning and control in your applications. This feature is particularly useful in automation and robotics where accurate detection is crucial.
2
Compact DesignWith a compact design, this cylinder is ideal for space-constrained environments. Its small footprint makes it easy to integrate into existing systems without compromising performance.
3
Elastic CushioningThe cylinder features elastic cushioning rings/plates at both ends, providing a smooth and controlled motion. This reduces wear and tear on the components, extending the lifespan of the cylinder.
4
Versatile Mounting OptionsThe AEVULQ-25-10-P-A cylinder offers optional mounting positions, allowing you to install it in any orientation that suits your application. This flexibility enhances its usability in various industrial settings.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

10mm

Piston diameter

25 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Pushing Single-acting

Piston rod end

Internal thread

High-Quality MaterialsConstructed from high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, this cylinder ensures durability and resistance to corrosion. The dynamic seals are made from NBR and TPE-U(PU) materials, providing reliable sealing performance.

Operational FlexibilityThe cylinder supports double-acting operation, enabling it to move in both directions. This feature is beneficial in applications requiring bidirectional motion control, such as in assembly lines or material handling systems.

Compliance with Industry StandardsThe AEVULQ-25-10-P-A cylinder complies with ISO 8573-1:2010 standards for compressed air quality, ensuring it operates efficiently and reliably in various environments. Additionally, it meets VDMA24364-B1/B2-L LABS (PWIS) conformity requirements, providing assurance of its quality and performance.

Operating Pressure RangeThe cylinder operates within a pressure range of 0.1 to 10 bar, making it adaptable to different operating conditions. This flexibility allows you to use it in a variety of applications, from low-pressure to high-pressure environments.

Corrosion ResistanceWith a corrosion resistance class of KBK 2, the AEVULQ-25-10-P-A cylinder is designed to withstand moderate corrosion stress. This makes it suitable for use in environments where exposure to moisture or chemicals is a concern.

Technical SupportFesto offers free lifetime technical support, ensuring you have access to expert assistance whenever you need it. This support helps in troubleshooting, maintenance, and optimizing the performance of the cylinder.

1Pneumatic ConnectionThe cylinder features a pneumatic connection of M5, making it easy to integrate with other pneumatic components. This standard connection ensures seamless integration into your existing system.

1Ambient Temperature RangeThe AEVULQ-25-10-P-A cylinder operates within an ambient temperature range of -20°C to 80°C, providing flexibility in various environmental conditions. This range ensures the cylinder performs optimally in different industrial settings.

1Impact EnergyWith an impact energy of 0.1 J at the end positions, the cylinder is designed to handle minor impacts without compromising its performance. This feature is particularly useful in applications where slight shocks may occur.

1Theoretical ForcesThe cylinder generates theoretical forces of 269 N at 6 bar (87 psi) during the advance stroke and 247 N during the return flow. These forces are calculated based on the cylinder's design and materials, ensuring it can handle the required loads in your application.

1Moving Mass and WeightThe moving mass of the cylinder is 26 g at 0 mm stroke, with an additional 6 g per 10 mm stroke. The base weight is 180 g, and an additional 28 g per 10 mm stroke. These specifications help in designing and integrating the cylinder into your system.

1Material SpecificationsThe piston rod is made from high-alloy stainless steel, ensuring durability and resistance to corrosion. The cylinder barrel is constructed from wrought aluminum alloy, providing a lightweight yet robust structure. The dynamic seals are made from NBR and TPE-U(PU) materials, ensuring reliable sealing performance.

1Installation FlexibilityThe AEVULQ-25-10-P-A cylinder can be installed with through-hole type mounting or with accessories, offering flexibility in its installation. This versatility makes it easy to integrate into various industrial settings.

1Operating MediumThe cylinder operates with compressed air to ISO 8573-1:2010 [7:4:4] standards, ensuring it operates efficiently and reliably in various environments. Lubricated operation is also possible, but it will always be required in further operations.

1Corrosion Resistance ClassThe AEVULQ-25-10-P-A cylinder has a corrosion resistance class of KBK 2, indicating it can withstand moderate corrosion stress. This makes it suitable for use in environments where exposure to moisture or chemicals is a concern.

20. Technical DocumentationFesto provides comprehensive technical documentation for the AEVULQ-25-10-P-A cylinder, including data sheets and CAD links. This documentation helps in detailed planning and integration of the cylinder into your system.

2Customer SupportFesto offers dedicated customer support, ensuring you have access to expert assistance whenever you need it. This support helps in troubleshooting, maintenance, and optimizing the performance of the cylinder.

2Ordering and PricingYou can order the AEVULQ-25-10-P-A cylinder through various distributors and online platforms. For pricing requests, you can add the product to your cart and submit a pricing request at checkout. Festo’s sales team will contact you to provide a quote.

Position sensing

For proximity sensor

Symbol

00991729

Variants

Piston rod at one end

Protection against torsion/guide

Square piston rod

Operating pressure

14.5psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.1J

Theoretical force at 6 bar, advancing

269N

Moving mass at 0 mm stroke

26g

Additional moving mass per 10 mm stroke

Basic weight with 0 mm stroke

180g

Additional weight per 10 mm stroke

28g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

Steel, galvanized

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

157038
