aevulq-16-25-p-a

Name: aevulq-16-25-p-a
Brand: FESTO
SKU: aevulq-16-25-p-a

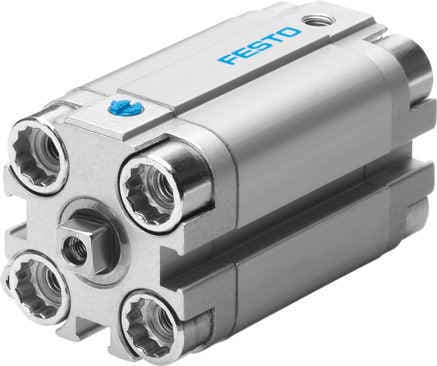

Product Description: The Festo AEVULQ-16-15-P-A compact cylinder offers single-acting operation with a 15mm stroke and 16mm piston diameter. It features elastic cushioning rings/plates at both ends and proximity sensing for precise control.

Product Modelaevulq-16-25-p-a

Material Number157031

Product ID4199

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
High Precision OperationThe AEVULQ-16-15-P-A cylinder ensures precise control with its single-acting operation, making it ideal for applications requiring precise movement.
2
Elastic CushioningEquipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth and controlled motion, reducing wear and tear on the system.
3
Proximity SensingThe cylinder is designed with proximity sensing, allowing for accurate position detection and enhancing overall system reliability.
4
Flexible Mounting OptionsThe AEVULQ-16-15-P-A offers flexible mounting options, including through-hole and accessories, making it versatile for various installation scenarios.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

25mm

Piston diameter

16 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Pushing Single-acting

Piston rod end

Internal thread

Corrosion ResistanceWith a corrosion resistance class of CRC 2, this cylinder is designed to withstand moderate corrosion stress, ensuring durability in challenging environments.

Position sensing

For proximity sensor

Symbol

00991729

Variants

Piston rod at one end

Protection against torsion/guide

Square piston rod

Operating pressure

21.75psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.1J

Theoretical force at 6 bar, advancing

111N

Moving mass at 0 mm stroke

12g

Additional moving mass per 10 mm stroke

Basic weight with 0 mm stroke

89g

Additional weight per 10 mm stroke

15g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

High-alloy stainless steel

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

157031
