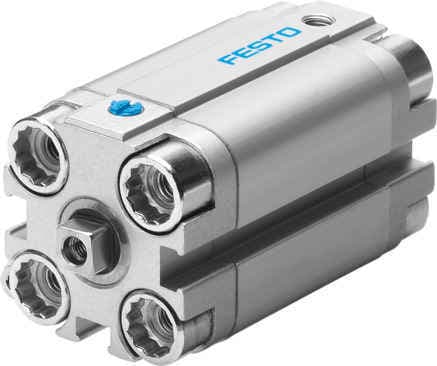

Double-Acting OperationThe Festo AEVULQ-16-20-P-A compact cylinder operates in both directions, providing flexibility and efficiency in your industrial processes.
2
Elastic CushioningEquipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth and controlled movement, reducing wear and tear on the system.
3
Proximity SensingIntegrated with proximity sensing technology, the AEVULQ-16-20-P-A allows for precise position detection, enhancing the accuracy of your operations.
4
Versatile Mounting OptionsThe cylinder can be mounted in any position, offering flexibility in system design and installation. This feature makes it suitable for a wide range of applications.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
20mm
Piston diameter
16 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Pushing Single-acting
Piston rod end
Internal thread
High-Quality MaterialsConstructed from high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, the AEVULQ-16-20-P-A ensures durability and resistance to corrosion, making it a reliable choice for industrial use.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991729
Variants
Piston rod at one end
Protection against torsion/guide
Square piston rod
Operating pressure
21.75psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
