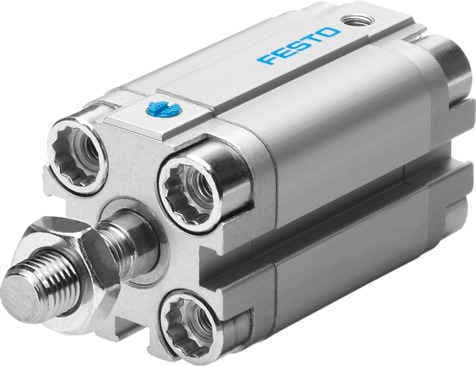

aevu-25-25-a-p-a

Name: aevu-25-25-a-p-a
Brand: FESTO
SKU: aevu-25-25-a-p-a

Product Description: The Festo AEVU-25-25-A-P-A compact cylinder features a 25 mm stroke, 25 mm piston diameter, and elastic cushioning rings/plates at both ends. It is designed for double-acting operations with an operating pressure range of 0.1 MPa to 1 MPa and is suitable for applications requiring high precision and reliability.

Product Modelaevu-25-25-a-p-a

Material Number156995

Product ID4168

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
High Precision and ReliabilityThe AEVU-25-25-A-P-A compact cylinder is engineered to provide precise and reliable performance, making it suitable for demanding industrial applications.
2
Versatile Mounting OptionsThe cylinder offers optional mounting positions, allowing for flexible installation in various settings, including through-hole and accessory mounting.
3
Elastic Cushioning for Smooth OperationEquipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear on the system.
4
High Operating PressureDesigned to handle operating pressures from 0.1 MPa to 1 MPa, this cylinder is ideal for applications requiring high force and precision.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

25mm

Piston diameter

25 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Pushing Single-acting

Piston rod end

External thread

Corrosion ResistanceWith a corrosion resistance class of CRC 2, the AEVU-25-25-A-P-A compact cylinder is designed to withstand moderate corrosion stress, ensuring durability in harsh environments.

Position Detection via Proximity SwitchThe cylinder includes position detection via proximity switch, allowing for precise control and monitoring of the piston's position.

Material QualityConstructed with high-alloy stainless steel for the piston rod and wrought aluminium alloy for the cylinder barrel, this product ensures high-quality materials that resist corrosion and wear.

Compliance with ISO StandardsThe AEVU-25-25-A-P-A compact cylinder operates with compressed air to ISO 8573-1:2010 [7:4:4], ensuring compliance with international standards for pneumatic systems.

Wide Ambient Temperature RangeCapable of operating in ambient temperatures ranging from -20 °C to 80 °C, this cylinder is versatile for use in various environmental conditions.

Impact Energy ControlWith an impact energy of 0.1 J in the end positions, the AEVU-25-25-A-P-A compact cylinder is designed to minimize shock and ensure smooth operation.

Position sensing

For proximity sensor

Symbol

00991729

Variants

Piston rod at one end

Operating pressure

14.5psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.1J

Theoretical force at 6 bar, advancing

269N

Moving mass at 0 mm stroke

26g

Additional moving mass per 10 mm stroke

Basic weight with 0 mm stroke

180g

Additional weight per 10 mm stroke

28g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

Steel, galvanized

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

156995
