aevu-25-20-a-p-a

Name: aevu-25-20-a-p-a
Brand: FESTO
SKU: aevu-25-20-a-p-a

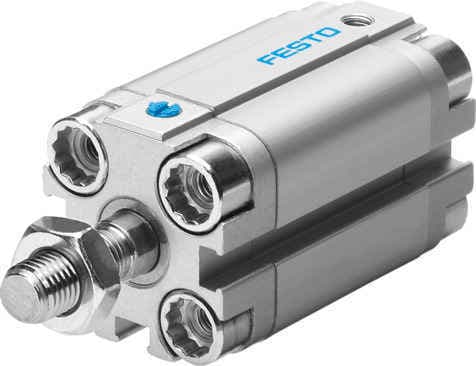

Product Description: Festo AEVU-25-20-A-P-A compact cylinder with 20mm stroke, 25mm piston diameter, and elastic cushioning rings/plates at both ends. Suitable for double-acting operations with compressed air.

Product Modelaevu-25-20-a-p-a

Material Number156994

Product ID4167

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Elastic Cushioning Rings/PlatesDescription: The AEVU-25-20-A-P-A features elastic cushioning rings/plates at both ends, ensuring smooth operation and reducing wear on the cylinder.
2
High-Alloy Stainless Steel Piston RodDescription: Constructed with high-alloy stainless steel, the piston rod provides exceptional durability and resistance to corrosion, ensuring long-lasting performance.
3
Optional Mounting PositionsDescription: The cylinder offers optional mounting positions, allowing for versatile installation options to fit various application requirements.
4
Compressed Air OperationDescription: Designed for operation with compressed air to ISO 8573-1:2010 [7:4:4], this cylinder ensures reliable performance in a wide range of pneumatic applications.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

20mm

Piston diameter

25 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Pushing Single-acting

Piston rod end

External thread

Position Detection via Proximity SwitchDescription: Equipped with position detection via proximity switch, the AEVU-25-20-A-P-A provides precise control and monitoring of the cylinder’s position, enhancing overall system accuracy.

Position sensing

For proximity sensor

Symbol

00991729

Variants

Piston rod at one end

Operating pressure

14.5psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.1J

Theoretical force at 6 bar, advancing

269N

Moving mass at 0 mm stroke

26g

Additional moving mass per 10 mm stroke

Basic weight with 0 mm stroke

180g

Additional weight per 10 mm stroke

28g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

Steel, galvanized

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

156994
