aevu-25-10-a-p-a

Name: aevu-25-10-a-p-a
Brand: FESTO
SKU: aevu-25-10-a-p-a

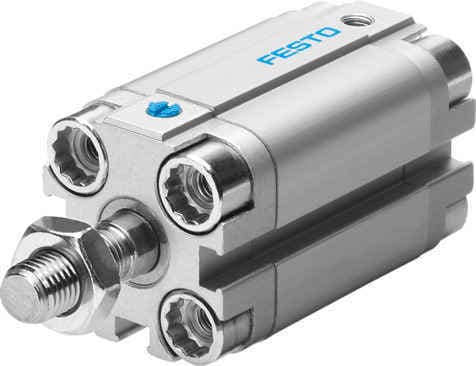

Short Product Description: Festo AEVU-25-10-A-P-A compact single-acting pneumatic cylinder with 25mm piston diameter and 10mm stroke, featuring elastic cushioning and optional mounting positions.

Product Modelaevu-25-10-a-p-a

Material Number156992

Product ID4165

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Compact DesignThe Festo AEVU-25-10-A-P-A is designed for space efficiency, making it perfect for applications where size is a constraint.
2
Single-Acting OperationThis cylinder operates in a single-acting mode, pushing in one direction, which simplifies control and reduces complexity in your system.
3
Elastic CushioningEquipped with elastic cushioning rings at both ends, this cylinder provides smooth operation and reduces wear and tear on the components.
4
Optional Mounting PositionsThe AEVU-25-10-A-P-A offers flexible mounting options, allowing you to position the cylinder according to your specific application needs.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

10mm

Piston diameter

25 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Pushing Single-acting

Piston rod end

External thread

High-Quality MaterialsConstructed from high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, this cylinder ensures durability and resistance to corrosion.

Precise ControlWith a theoretical force of 269 N at 6 bar, this cylinder provides precise control over your pneumatic system, ensuring reliable performance in various applications.

Wide Operating Pressure RangeOperating pressure ranges from 0.1 MPa to 1 MPa (1 bar to 10 bar), offering flexibility in your system design to accommodate different pressure requirements.

Compliant with Industry StandardsMeets ISO 8573-1:2010 standards for compressed air quality and VDMA24364-B1/B2-L for LABS (PWIS) conformity, ensuring compatibility with various industrial environments.

Easy Position DetectionSupports position detection via proximity switch, facilitating easy integration with control systems for precise positioning and monitoring.

Durable SealsEquipped with NBR and TPE-U(PU) dynamic seals, providing reliable sealing performance and extending the lifespan of the cylinder.

1Wide Temperature RangeOperates within an ambient temperature range of -20°C to 80°C, making it suitable for a variety of industrial environments.

1Pneumatic ConnectionFeatures an M5 pneumatic connection, ensuring easy integration with other pneumatic components in your system.

1Galvanized Steel Collar ScrewsIncludes galvanized steel collar screws for added durability and resistance to corrosion.

1Aluminum Alloy CoverConstructed with an aluminum alloy cover for lightweight yet robust construction.

1Low Impact EnergyDesigned to withstand low impact energy at end positions, ensuring smooth operation even under moderate stress conditions.

Position sensing

For proximity sensor

Symbol

00991729

Variants

Piston rod at one end

Operating pressure

14.5psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.1J

Theoretical force at 6 bar, advancing

269N

Moving mass at 0 mm stroke

26g

Additional moving mass per 10 mm stroke

Basic weight with 0 mm stroke

180g

Additional weight per 10 mm stroke

28g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

Steel, galvanized

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

156992
