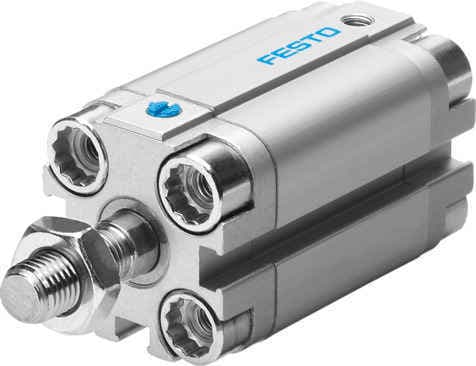

Compact, double-acting cylinder with 16mm piston diameter and 25mm stroke. Features elastic cushioning and high-alloy stainless steel components for durability and precision.
Product Modelaevu-16-25-a-p-a
Material Number156985
Product ID4158
Stock on Request
Last updated: 8/29/2026
Key Features
1
Compact DesignThe Festo AEVU-16-25-A-P-A is designed to be compact, making it ideal for space-constrained applications without compromising on performance.
2
Elastic CushioningEquipped with elastic cushioning rings/plates on both ends, this cylinder ensures smooth operation and reduces wear and tear, extending its lifespan.
3
High-Alloy Stainless Steel ComponentsThe use of high-alloy stainless steel for the piston rod and flange screws provides exceptional corrosion resistance and durability, ensuring the cylinder operates reliably in various environments.
4
Position Sensing CapabilityThe magnetic piston allows for precise position sensing, enabling accurate control and monitoring of the cylinder's movement, which is crucial in applications requiring precise positioning.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
25mm
Piston diameter
16 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Pushing Single-acting
Piston rod end
External thread
5
Versatile Operating ConditionsThis compact cylinder operates within a wide temperature range of -20°C to 80°C and supports pressures from 0.12 MPa to 1 MPa, making it versatile for use in various industrial settings.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991729
Variants
Piston rod at one end
Operating pressure
18.85psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
