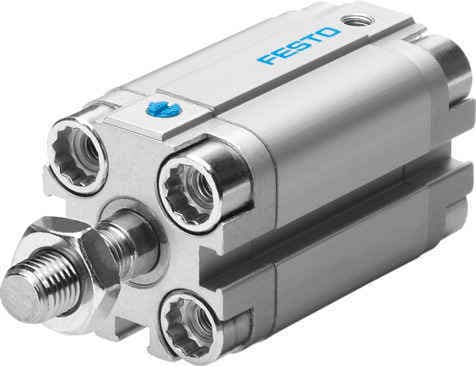

The Festo AEVU-16-20-A-P-A is a compact, single-acting pneumatic cylinder with a 20mm stroke and 16mm piston diameter. It features elastic cushioning rings/plates and supports optional mounting positions with proximity switch position detection.

Product Modelaevu-16-20-a-p-a

Material Number156984

Product ID4157

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Compact DesignThe Festo AEVU-16-20-A-P-A is designed to be compact, making it ideal for space-constrained applications. Its compact size allows for efficient use of space, reducing the overall footprint of your system.
2
Elastic CushioningEquipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear on the piston rod. This feature enhances the overall durability and longevity of the cylinder.
3
Optional Mounting PositionsThe AEVU-16-20-A-P-A offers optional mounting positions, providing flexibility in installation. This feature allows for easy integration into various mechanical systems, making it a versatile choice for different applications.
4
Proximity Switch Position DetectionThe cylinder is designed with proximity switch position detection, enabling precise control over the piston's movement. This feature ensures accurate positioning and reliable operation, crucial for applications requiring precise control.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

20mm

Piston diameter

16 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Pushing Single-acting

Piston rod end

External thread

High-Performance Operating RangeThe AEVU-16-20-A-P-A operates within a wide pressure range of 0.13 MPa to 1 MPa (1.3 bar to 10 bar), making it suitable for a variety of applications. Its high-performance operating range ensures reliable operation under different conditions.

Corrosion Resistance and Material QualityConstructed with high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, this product offers excellent corrosion resistance. The use of high-quality materials ensures long-lasting performance and reliability in harsh environments.

Operational FlexibilityThe AEVU-16-20-A-P-A supports both lubricated and unlubricated operation, providing flexibility in system design. This feature allows users to choose the most suitable operating method based on their specific requirements.

ATEX ComplianceThe Festo AEVU series, including the AEVU-16-20-A-P-A, is specified in accordance with the ATEX directive for potentially explosive atmospheres. This compliance ensures the cylinder's safe operation in hazardous environments, making it a reliable choice for industries requiring ATEX certification.

Environmental CompatibilityThe cylinder operates with compressed air to ISO 8573-1:2010 [7:4:4], ensuring compatibility with standard air filtration systems. This feature helps maintain a clean and efficient operating environment, reducing the risk of contamination and ensuring reliable performance.

Ambient Temperature RangeThe AEVU-16-20-A-P-A operates within an ambient temperature range of -20°C to 80°C, providing flexibility in various environmental conditions. This wide temperature range ensures the cylinder's reliable operation in different settings, from cold storage to warm industrial environments.

Position sensing

For proximity sensor

Symbol

00991729

Variants

Piston rod at one end

Operating pressure

18.85psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.1J

Theoretical force at 6 bar, advancing

111N

Moving mass at 0 mm stroke

12g

Additional moving mass per 10 mm stroke

Basic weight with 0 mm stroke

89g

Additional weight per 10 mm stroke

15g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

High-alloy stainless steel

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

156984
