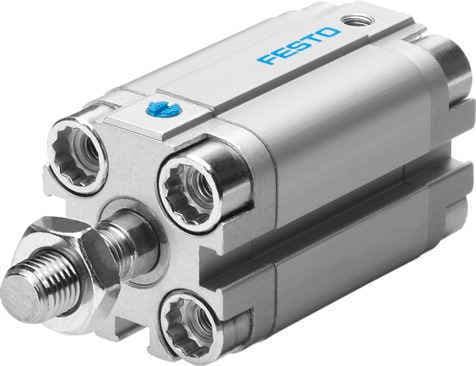

Compact cylinder with 15mm stroke, 16mm piston diameter, and flexible cushioning rings. Suitable for single-acting operation and proximity sensing.
Product Modelaevu-16-15-a-p-a
Material Number156983
Product ID4156
Stock on Request
Last updated: 8/29/2026
Key Features
1
Proximity Sensing CapabilityThe Festo AEVU-16-15-A-P-A features a magnetic piston for precise position sensing, ensuring accurate control in your applications.
2
Flexible CushioningEquipped with elastic cushioning rings at both ends, this cylinder provides smooth operation and reduces wear and tear.
3
Compact DesignDesigned to ISO 15552 specifications, this compact cylinder offers a wide range of mounting options, making it versatile for various industrial settings.
4
High-Quality MaterialsConstructed with high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, ensuring durability and corrosion resistance.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
15mm
Piston diameter
16 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Pushing Single-acting
Piston rod end
External thread
Versatile Mounting OptionsAvailable with either male or female threads on the piston rod end, providing flexibility in assembly and integration into different systems.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991729
Variants
Piston rod at one end
Operating pressure
18.85psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
0.1J
Theoretical force at 6 bar, advancing
111N
Moving mass at 0 mm stroke
12g
Additional moving mass per 10 mm stroke
4g
Basic weight with 0 mm stroke
89g
Additional weight per 10 mm stroke
15g
Type of mounting
Optionally: With through-hole With accessories
Pneumatic connection
M5
Flange screws material
High-alloy stainless steel
Cover material
Wrought aluminum alloy
Material of dynamic seals
NBR TPE-U(PU)
Piston rod material
High-alloy stainless steel
Material of cylinder barrel
Wrought aluminum alloy
Manufacturer ID
156983
