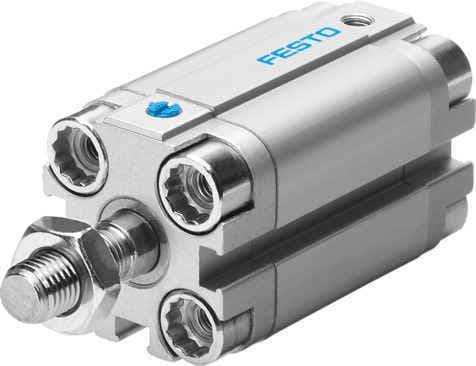

Precision EngineeringThe Festo AEVU-16-10-A-P-A compact cylinder is engineered to precise ISO 15552 specifications, ensuring high-quality performance in a wide range of industrial applications.
2
Flexible OperationThis cylinder offers both single and double-acting modes, providing flexibility in operation to suit various application requirements.
3
Position Sensing CapabilityEquipped with a magnetic piston, the AEVU series allows for accurate position sensing, enhancing control and precision in automated systems.
4
Durable ConstructionConstructed with high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, this compact cylinder is built to withstand moderate corrosion stress and operate within a wide temperature range (-20°C to 80°C).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
10mm
Piston diameter
16 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Pushing Single-acting
Piston rod end
External thread
5
Elastic CushioningFeaturing elastic cushioning rings/plates at both ends, the AEVU-16-10-A-P-A ensures smooth operation and reduces wear on the cylinder, extending its lifespan and maintaining consistent performance.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991729
Variants
Piston rod at one end
Operating pressure
18.85psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
