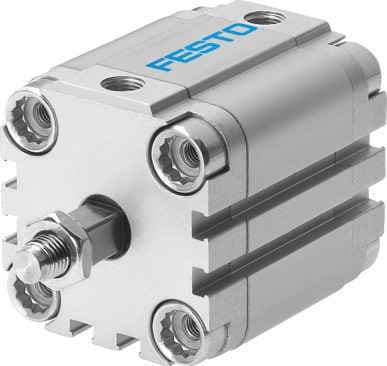

High Performance in Double-Acting OperationsThe Festo ADVUL-100-60-A-P-A is designed for double-acting operations, providing consistent and reliable performance in a wide range of applications.
2
Precise Control with Elastic CushioningEquipped with elastic cushioning rings at both ends, this cylinder ensures smooth operation and precise control, reducing wear and tear on the system.
3
Versatile Mounting OptionsThe cylinder can be mounted via through-holes, accessories, or selectively, offering flexibility in installation to suit various application requirements.
4
Corrosion Resistance and DurabilityConstructed from high-quality materials, including wrought aluminum alloy for the cover and high-alloy steel for the piston rod, this cylinder offers moderate corrosion resistance (CRC 2) and durability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
60mm
Piston diameter
100 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Double-acting
Piston rod end
External thread
5
Operational Flexibility with Compressed AirCompatible with compressed air as per ISO 8573-1:2010, this cylinder can operate within a pressure range of 0.1 MPa to 1 MPa, making it suitable for a variety of pneumatic applications.
6
Operational Temperature RangeThe Festo ADVUL-100-60-A-P-A operates within an ambient temperature range of -20°C to 80°C, ensuring reliable performance in diverse environmental conditions.
7
Impact Energy and Theoretical ForcesWith an impact energy of 1 J at the end positions, this cylinder provides consistent forces of 4418 N (retracting) and 4712 N (advancing) at 6 bar, ensuring stable and controlled movement.
8
Lightweight yet Robust DesignWeighing approximately 3.4 kg, this compact cylinder is both lightweight and robust, making it easy to handle and integrate into various systems without compromising on performance.
9
Position Sensing CapabilityEquipped with proximity sensing capabilities, this cylinder allows for precise position detection, enhancing the accuracy and reliability of your application.
10
Compliance with Industry StandardsThe Festo ADVUL-100-60-A-P-A conforms to VDMA24364-B1/B2-L standards, ensuring compliance with industry norms for safety and performance.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991217
Variants
Piston rod at one end
Protection against torsion/guide
Square piston rod
Operating pressure
14.5psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
