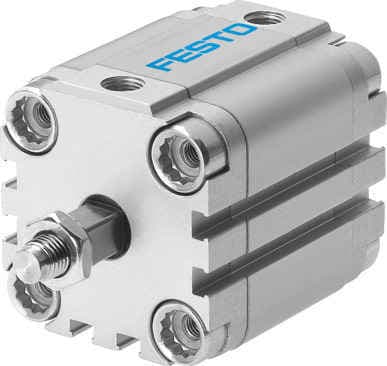

Festo ADVULQ-80-30-A-P-A compact cylinder for proximity sensing with 30mm stroke and 80mm piston diameter. Elastic cushioning and double-acting operation.
Product Modeladvulq-80-30-a-p-a
Material Number156830
Product ID4009
Stock on Request
Last updated: 8/29/2026
Key Features
1
Proximity Sensing CapabilityThe Festo ADVULQ-80-30-A-P-A compact cylinder is equipped with proximity sensing, allowing for precise detection and control in your application.
2
Secure Piston RodThe square piston rod ensures the cylinder is secured against rotation, providing stability and reliability in your system.
3
Elastic CushioningThe elastic cushioning rings at both ends of the cylinder ensure smooth operation and reduce wear and tear, extending the lifespan of the component.
4
Versatile Mounting OptionsThe cylinder can be mounted via through-holes, female threads, or accessories, offering flexibility in installation and integration into your system.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
30mm
Piston diameter
80 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Double-acting
Piston rod end
External thread
High-Performance OperationDesigned for double-acting operations, the ADVULQ-80-30-A-P-A compact cylinder delivers high performance and efficiency in a compact design, making it suitable for a wide range of industrial applications.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991217
Variants
Piston rod at one end
Protection against torsion/guide
Square piston rod
Operating pressure
14.5psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
