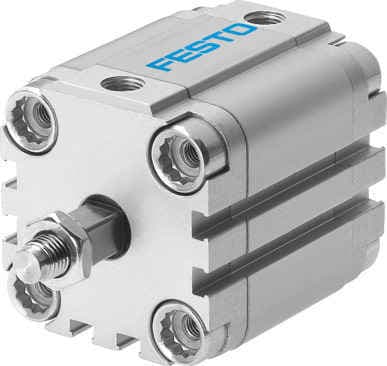

advulq-80-25-a-p-a

Name: advulq-80-25-a-p-a
Brand: FESTO
SKU: advulq-80-25-a-p-a

Short Product Description: Compact double-acting pneumatic air cylinder with elastic cushioning, built-in magnet, and high-alloy steel piston rod. Suitable for a wide range of industrial applications.

Product Modeladvulq-80-25-a-p-a

Material Number156829

Product ID4008

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Compact Design and VersatilityThe Festo ADVULQ-80-25-P-A offers a compact design with a wide range of mounting options, making it versatile for various industrial applications.
2
Elastic Cushioning for Smooth OperationEquipped with elastic cushioning rings/pads at both ends, ensuring smooth operation and reducing wear and tear on the cylinder.
3
Built-in Magnet for Easy PositioningFeatures a built-in magnet for easy positioning and alignment, enhancing the efficiency of your operations.
4
High-Alloy Steel Piston RodThe high-alloy steel piston rod provides durability and resistance to wear, ensuring long-lasting performance in demanding environments.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

25mm

Piston diameter

80 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Double-acting

Piston rod end

External thread

Moderate Corrosion ResistanceDesigned with a moderate corrosion resistance class (CRC 2), this cylinder can withstand various industrial conditions while maintaining its integrity.

Wide Operating Temperature RangeOperates effectively within a wide temperature range of -20°C to 80°C, making it suitable for diverse industrial settings.

Double-Acting OperationOffers double-acting operation, allowing for both advancing and retracting strokes, which enhances the versatility and efficiency of the cylinder in various applications.

Easy Maintenance and IntegrationDesigned for easy maintenance and integration into existing pneumatic systems, reducing downtime and increasing overall productivity.

Galvanized Steel Flange ScrewsEquipped with galvanized steel flange screws, providing additional strength and resistance to corrosion, ensuring a secure and durable installation.

Position sensing

For proximity sensor

Symbol

00991217

Variants

Piston rod at one end

Protection against torsion/guide

Square piston rod

Operating pressure

14.5psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.75J

Theoretical force at 6 bar, retracting

2827N

Theoretical force at 6 bar, advancing

3016N

Moving mass at 0 mm stroke

307g

Additional moving mass per 10 mm stroke

25g

Basic weight with 0 mm stroke

1772g

Additional weight per 10 mm stroke

168g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

G1/8

Flange screws material

Steel, galvanized

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

156829
