Name: advulq-80-20-a-p-a
Brand: FESTO
SKU: advulq-80-20-a-p-a

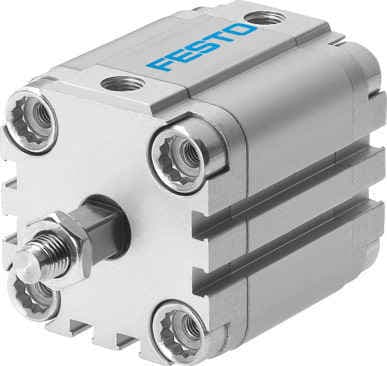

The Festo ADVULQ-80-20-A-P-A is a compact, double-acting air cylinder with a 20 mm stroke and 80 mm piston diameter. It includes elastic cushioning rings/pads and supports proximity sensor integration, making it versatile for various industrial uses.

Product Modeladvulq-80-20-a-p-a

Material Number156828

Product ID4007

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
High Performance and ReliabilityThe Festo ADVULQ-80-20-A-P-A is designed to provide consistent and reliable performance in a wide range of industrial applications. Its robust construction ensures long-lasting operation.
2
Compact DesignWith a compact design, this air cylinder is ideal for space-constrained environments. Its small footprint makes it easy to integrate into various systems without compromising performance.
3
Elastic Cushioning Rings/PadsThe ADVULQ-80-20-A-P-A features elastic cushioning rings/pads at both ends, which help reduce wear and tear on the cylinder, extending its lifespan and improving overall efficiency.
4
Proximity Sensor CompatibilityThis air cylinder supports proximity sensor integration, allowing for precise position detection and control. This feature enhances the accuracy and reliability of your system.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

20mm

Piston diameter

80 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Double-acting

Piston rod end

External thread

Versatile Mounting OptionsThe ADVULQ-80-20-A-P-A offers flexible mounting options, including through-hole and accessories, making it adaptable to various mounting configurations. This flexibility ensures easy integration into different mechanical systems.

Operational FlexibilityThe air cylinder operates within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar), providing flexibility in terms of operating conditions. This range accommodates a variety of pneumatic systems, ensuring compatibility with different applications.

Corrosion ResistanceWith a corrosion resistance class of CRC 2, the ADVULQ-80-20-A-P-A is designed to withstand moderate corrosion stress, making it suitable for use in environments where exposure to moisture or chemicals is a concern.

Material QualityThe cylinder barrel is made from wrought aluminum alloy, while the piston rod is constructed from high-alloy steel. This combination of materials ensures durability and resistance to wear, contributing to the overall reliability of the product.

Operating MediumThe ADVULQ-80-20-A-P-A operates with compressed air as per ISO 8573-1:2010 [7:4:4], ensuring compatibility with standard pneumatic systems. Lubricated operation is also possible, which can enhance performance in certain applications.

Temperature RangeThe air cylinder operates within an ambient temperature range of -20 °C to 80 °C, making it suitable for a wide range of industrial environments. This temperature range accommodates various applications, from cold storage to high-temperature manufacturing processes.

1Impact EnergyThe ADVULQ-80-20-A-P-A has an impact energy of 0.75 J in the end positions, which helps in reducing the risk of damage during operation. This feature ensures that the cylinder can withstand minor impacts without compromising its performance.

1Theoretical ForcesThe theoretical force at 0.6 MPa (6 bar, 87 psi) for the return stroke is 2827 N, and for the advance stroke, it is 3016 N. These forces provide a clear indication of the cylinder's capability to handle various loads, making it suitable for applications requiring precise force control.

1Moving MassThe moving mass for a 0 mm stroke is 307 g, with an additional moving mass of 25 g per 10 mm stroke. This information helps in calculating the overall mass of the system, ensuring proper balancing and stability.

1Basic WeightThe basic weight for a 0 mm stroke is 1772 g, with an additional weight of 168 g per 10 mm stroke. This data aids in designing the overall system, ensuring that it is balanced and efficient.

1Material SpecificationsThe dynamic seals are made from NBR and TPE-U(PU), ensuring durability and resistance to wear. The collar screws are galvanized steel, providing a secure and corrosion-resistant fastening solution. The cover material is wrought aluminum alloy, which offers a lightweight yet robust construction.

Position sensing

For proximity sensor

Symbol

00991217

Variants

Piston rod at one end

Protection against torsion/guide

Square piston rod

Operating pressure

14.5psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.75J

Theoretical force at 6 bar, retracting

2827N

Theoretical force at 6 bar, advancing

3016N

Moving mass at 0 mm stroke

307g

Additional moving mass per 10 mm stroke

25g

Basic weight with 0 mm stroke

1772g

Additional weight per 10 mm stroke

168g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

G1/8

Flange screws material

Steel, galvanized

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

156828
