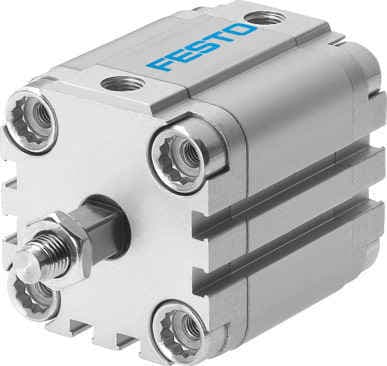

Proximity Sensing CapabilityThe Festo ADVULQ-50-10-A-P-A compact cylinder is equipped with proximity sensing, allowing for precise positioning and control in your applications.
2
Flexible CushioningThe cylinder features flexible cushioning rings/plates at both ends, ensuring smooth operation and reducing wear and tear.
3
Double-Acting OperationDesigned for double-acting applications, this cylinder provides reliable and efficient operation in both advancing and retracting strokes.
4
Versatile Mounting OptionsThe cylinder can be mounted via through-holes, female threads, or accessories, offering flexibility in installation and integration.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
10mm
Piston diameter
50 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Double-acting
Piston rod end
External thread
High-Quality MaterialsConstructed with high-alloy steel for the piston rod and wrought aluminum alloy for the cylinder barrel, ensuring durability and resistance to corrosion.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991217
Variants
Piston rod at one end
Protection against torsion/guide
Square piston rod
Operating pressure
14.5psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
