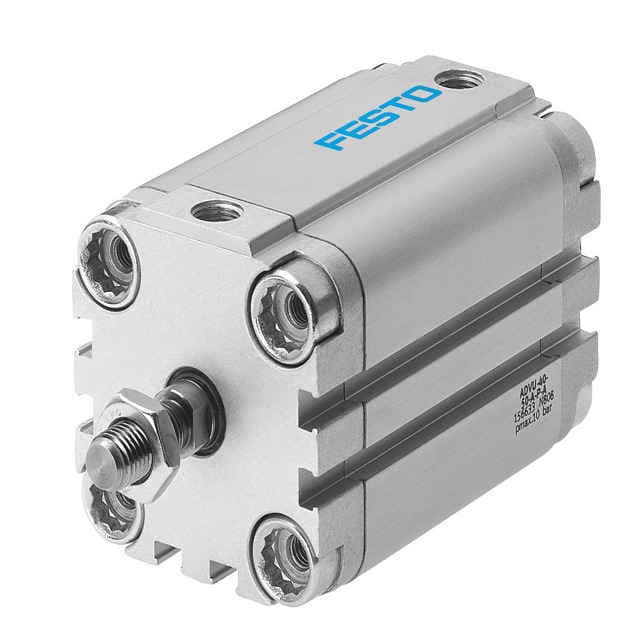

Compact DesignThe Festo ADVU-100-15-A-P-A is designed to be compact, making it ideal for space-constrained applications. Its small size allows for easy integration into complex systems without compromising performance.
2
Double-Acting OperationThis air cylinder operates in both directions, providing precise control and flexibility in your industrial processes. The double-acting feature ensures consistent performance and reliability.
3
Elastic CushioningEquipped with elastic cushioning rings/plates at both ends, the ADVU-100-15-A-P-A reduces wear and tear on the cylinder, extending its lifespan. This feature also enhances the overall smoothness of operation.
4
Optional Mounting PositionsThe cylinder offers optional mounting positions, allowing for greater flexibility in installation. This feature ensures that the cylinder can be integrated into various systems without requiring extensive modifications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
15mm
Piston diameter
100 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Double-acting
Piston rod end
External thread
5
High Corrosion ResistanceThe ADVU-100-15-A-P-A is designed with a moderate corrosion resistance class (CRC 2), making it suitable for use in environments where exposure to industrial media is a concern. This ensures the longevity of the cylinder in demanding applications.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991217
Variants
Piston rod at one end
Operating pressure
8.7psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
1J
Theoretical force at 6 bar, retracting
4418N
Theoretical force at 6 bar, advancing
4712N
Moving mass at 0 mm stroke
614g
Additional moving mass per 10 mm stroke
38g
Basic weight with 0 mm stroke
2797g
Additional weight per 10 mm stroke
177g
Type of mounting
Optionally: With through-hole With accessories
Pneumatic connection
G1/4
Flange screws material
Steel, galvanized
Cover material
Wrought aluminum alloy
Material of dynamic seals
NBR TPE-U(PU)
Piston rod material
High-alloy steel
Material of cylinder barrel
Wrought aluminum alloy
Manufacturer ID
156664
