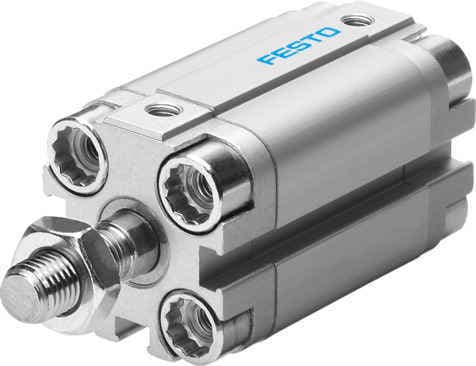

advu-20-25-a-p-a

Name: advu-20-25-a-p-a
Brand: FESTO
SKU: advu-20-25-a-p-a

Short Product Description: The Festo ADVU-20-25-A-P-A compact cylinder offers double-acting operation, elastic cushioning, and versatile mounting options, making it perfect for precision applications in various industries.

Product Modeladvu-20-25-a-p-a

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Versatile Mounting OptionsThe ADVU-20-25-A-P-A allows for any mounting position, providing flexibility in system design and installation.
2
Elastic CushioningEquipped with elastic cushioning rings/pads at both ends, this cylinder ensures smooth operation and reduces wear and tear.
3
Double-Acting OperationDesigned for double-acting applications, this cylinder can perform both advancing and retracting strokes, enhancing system efficiency.
4
High-Performance MaterialsConstructed with high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, ensuring durability and resistance to corrosion.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

25mm

Piston diameter

20 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Double-acting

Piston rod end

External thread

Precision Position SensingCompatible with proximity sensors, the ADVU-20-25-A-P-A provides precise position detection, making it suitable for applications requiring accurate control.

Position sensing

For proximity sensor

Symbol

00991217

Variants

Piston rod at one end

Operating pressure

14.5psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.14J

Theoretical force at 6 bar, retracting

141N

Theoretical force at 6 bar, advancing

188N

Moving mass at 0 mm stroke

20g

Additional moving mass per 10 mm stroke

Basic weight with 0 mm stroke

149g

Additional weight per 10 mm stroke

23g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

Steel, galvanized

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

156604
