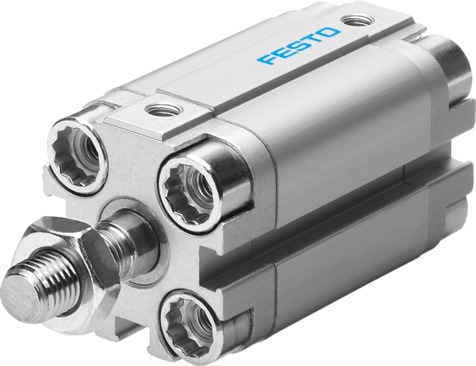

Festo ADVU-20-15-A-P-A compact air cylinder offers 15mm stroke, 20mm piston diameter, and elastic cushioning. Suitable for double-acting applications with high corrosion resistance and operating pressure up to 10 bar.

Product Modeladvu-20-15-a-p-a

Material Number156602

Product ID3781

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
High Precision and DurabilityThe Festo ADVU-20-15-A-P-A is designed for precise and durable performance, ensuring reliable operation in various industrial applications.
2
Compact DesignWith a compact design, this cylinder is ideal for space-constrained environments, making it perfect for integration into complex machinery systems.
3
Elastic CushioningEquipped with elastic cushioning rings/pads at both ends, this cylinder provides smooth operation and reduces wear and tear, extending its lifespan.
4
Versatile Mounting OptionsThe ADVU-20-15-A-P-A offers flexible mounting options, allowing for easy installation in various configurations, including through-hole and with accessories.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

15mm

Piston diameter

20 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Double-acting

Piston rod end

External thread

High Operating PressureCapable of operating at pressures up to 10 bar (1 MPa), this cylinder is suitable for demanding applications requiring robust performance.

Corrosion ResistanceFeaturing a corrosion resistance class of CRC 2, this cylinder is designed to withstand moderate corrosion stress, ensuring reliability in harsh environments.

Position DetectionEquipped with proximity switch for position detection, this cylinder provides accurate feedback, enhancing control and precision in automated systems.

Material QualityConstructed from high-quality materials such as high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, ensuring durability and resistance to wear.

Operating MediumCompatible with compressed air as per ISO 8573-1:2010 [7:4:4], this cylinder operates efficiently with standard compressed air systems, reducing the need for specialized media.

Temperature RangeOperating within a temperature range of -20°C to 80°C, this cylinder can handle a wide range of ambient conditions, making it suitable for various industrial settings.

1Impact EnergyWith an impact energy of 0.14 J in end positions, this cylinder is designed to withstand minor impacts, ensuring continued operation even in dynamic environments.

1Theoretical ForcesTheoretical forces at 6 bar are 141 N for retracting and 188 N for advancing, providing a balanced performance in both directions of operation.

1Moving MassThe moving mass is 20g at 0mm stroke, with an additional 6g per 10mm stroke, ensuring smooth and controlled movement.

1Basic WeightThe basic weight is 149g at 0mm stroke, with an additional 23g per 10mm stroke, providing a robust foundation for precise operation.

1Pneumatic ConnectionFeaturing an M5 pneumatic connection, this cylinder integrates seamlessly with standard pneumatic systems, simplifying installation and maintenance.

1Material of Dynamic SealsEquipped with dynamic seals made from TPE-U(PU) and NBR materials, ensuring reliable sealing and minimizing leakage.

1Flange Screws MaterialConstructed with galvanized steel flange screws, providing strength and corrosion resistance for secure mounting.

1Cover MaterialThe cover is made from wrought aluminum alloy, offering a lightweight yet durable solution for protecting the internal components.

1Piston Rod MaterialThe piston rod is made from high-alloy stainless steel, ensuring high strength and resistance to corrosion, extending the lifespan of the cylinder.

20. Cylinder Barrel MaterialThe cylinder barrel is constructed from wrought aluminum alloy, providing a durable and lightweight structure for the cylinder.

Position sensing

For proximity sensor

Symbol

00991217

Variants

Piston rod at one end

Operating pressure

14.5psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.14J

Theoretical force at 6 bar, retracting

141N

Theoretical force at 6 bar, advancing

188N

Moving mass at 0 mm stroke

20g

Additional moving mass per 10 mm stroke

Basic weight with 0 mm stroke

149g

Additional weight per 10 mm stroke

23g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

Steel, galvanized

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

156602
