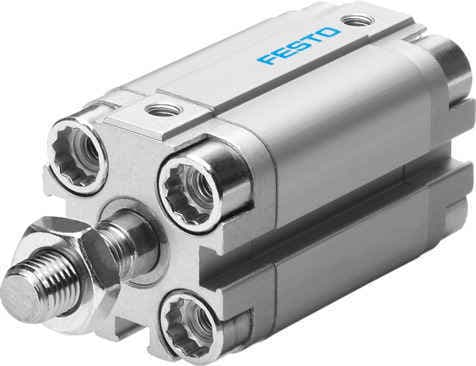

Compact DesignThe Festo ADVU-20-10-A-P-A is designed to be compact, making it ideal for space-constrained industrial applications. Its small size allows for easy integration into various systems.
2
Double-Acting OperationThis cylinder operates in both directions, providing flexibility and versatility in your automation setup. It can be used for both extending and retracting movements, making it a versatile choice.
3
Elastic CushioningEquipped with elastic cushioning rings/pads at both ends, the ADVU-20-10-A-P-A ensures smooth operation and reduces the impact of end positions. This feature helps in minimizing wear and tear, extending the lifespan of the cylinder.
4
High-Pressure CapabilityThe cylinder operates at pressures ranging from 1 to 10 bar, making it suitable for a wide range of industrial applications that require high-pressure operation. This capability ensures reliable performance under various conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
10mm
Piston diameter
20 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Double-acting
Piston rod end
External thread
5
Material DurabilityConstructed from high-quality materials such as wrought aluminum alloy for the cylinder barrel and high-alloy stainless steel for the piston rod, the ADVU-20-10-A-P-A offers excellent durability and resistance to corrosion. This ensures long-lasting performance in demanding industrial environments.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991217
Variants
Piston rod at one end
Operating pressure
14.5psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
