Compact double-acting pneumatic cylinder with elastic cushioning, ideal for precise control and durability in various industrial applications.

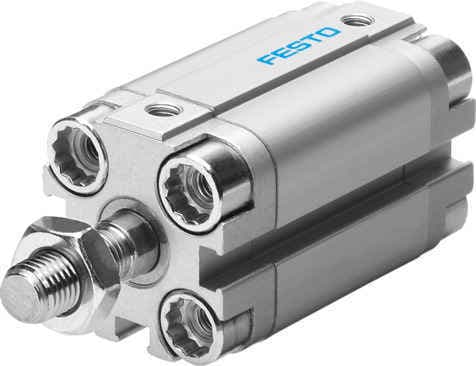

Product Modeladvu-12-40-a-p-a
Material Number
156592
Product ID3770
Stock on Request
Last updated: 8/29/2026
Key Features
1
Compact DesignThe Festo ADVU-12-40-A-P-A features a compact design, making it perfect for applications where space is limited. Its small size allows for efficient use in a variety of industrial settings.
2
Elastic CushioningEquipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth and controlled movement, reducing wear and tear on the system.
3
Double-Acting OperationThe ADVU-12-40-A-P-A operates in a double-acting mode, allowing for both extension and retraction strokes. This versatility makes it suitable for a wide range of applications.
4
High-Quality MaterialsConstructed with high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, this product ensures durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
40mm
Piston diameter
12 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Double-acting
Piston rod end
External thread
5
Precise ControlDesigned for precise control, the ADVU-12-40-A-P-A is ideal for applications requiring accurate and reliable movement. Its built-in magnet and proximity switch enable precise position detection.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991217
Variants
Piston rod at one end
Operating pressure
17.4psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
