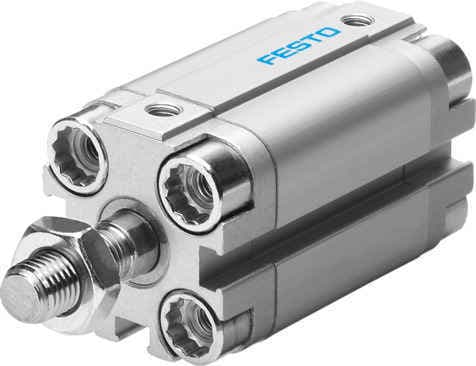

Elastic Cushioning Rings/PlatesThe ADVU-12-20-A-P-A features elastic cushioning rings/plates at both ends, ensuring smooth operation and reducing wear on the cylinder.
2
Double-Acting OperationThis compact cylinder operates in a double-acting mode, allowing for both extension and retraction strokes, enhancing versatility in applications.
3
Proximity SensingEquipped with proximity sensing capabilities, the ADVU-12-20-A-P-A allows for precise position detection, ensuring accurate control in your pneumatic system.
4
Versatile Mounting PositionsThe cylinder can be mounted in any position, offering flexibility in system design and installation.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
20mm
Piston diameter
12 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Double-acting
Piston rod end
External thread
High Operating PressureDesigned to operate under pressures from 1.2 to 10 bar, the ADVU-12-20-A-P-A is suitable for a wide range of pneumatic applications requiring high performance.
6
Feature### Additional Specifications
7
- Stroke20 mm
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991217
Variants
Piston rod at one end
Operating pressure
17.4psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
