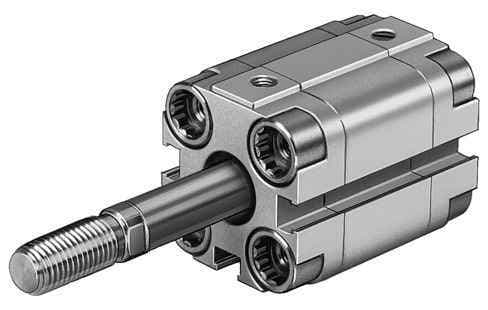

The Festo AEVUZ-16- -A-P-A compact air cylinder offers high precision and durability, suitable for single-acting pulling applications with elastic cushioning and proximity sensing.
Product Modelaevuz-16- -a-p-a
Material Number156481
Product ID3656
Stock on Request
Last updated: 8/29/2026
Key Features
1
High Precision and DurabilityThe Festo AEVUZ-16- -A-P-A is engineered to provide high precision and durability, making it a reliable choice for various industrial applications. Its robust design ensures long-lasting performance.
2
Elastic CushioningEquipped with elastic cushioning rings/pads at both ends, this cylinder minimizes shock and vibration, ensuring smooth operation and extending the lifespan of the product.
3
Proximity Sensing CapabilityDesigned for proximity sensing, the AEVUZ-16- -A-P-A allows for precise position detection, enabling accurate control and monitoring of the cylinder’s movement.
4
Versatile Mounting OptionsThe cylinder offers flexible mounting options, including through-hole and accessory mounting, providing versatility in installation and integration into various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
1mm 25mm
Piston diameter
16 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Single-acting Pulling
Piston rod end
External thread
5
Corrosion ResistanceWith a corrosion resistance class of 2 (moderate corrosion stress), the AEVUZ-16- -A-P-A is suitable for applications where moderate corrosion is a concern, ensuring consistent performance in challenging environments.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991204
Variants
Piston rod at one end
Operating pressure
18.85psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
0.1J
Theoretical force at 6 bar, advancing
81N
Moving mass at 0 mm stroke
12g
Additional moving mass per 10 mm stroke
4g
Basic weight with 0 mm stroke
89g
Additional weight per 10 mm stroke
15g
Type of mounting
Optionally: With through-hole With accessories
Pneumatic connection
M5
Flange screws material
High-alloy stainless steel
Cover material
Wrought aluminum alloy
Material of dynamic seals
NBR TPE-U(PU)
Piston rod material
High-alloy stainless steel
Material of cylinder barrel
Wrought aluminum alloy
Manufacturer ID
156481
