aevuz-16- -p-a

Name: aevuz-16- -p-a
Brand: FESTO
SKU: aevuz-16- -p-a

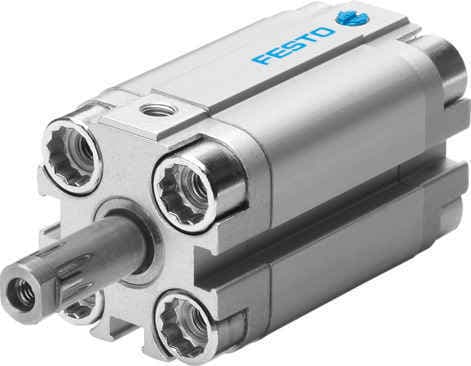

The Festo AEVUZ-16-5-P-A compact cylinder is designed for precise and reliable operation. With a piston diameter of 16 mm and a stroke of 5 mm, it features elastic silencer rings for smooth operation and an optional mounting position for flexibility. Suitable for compressed air applications, this cylinder ensures high performance and durability.

Product Modelaevuz-16- -p-a

Material Number156461

Product ID3635

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Precision and ReliabilityThe Festo AEVUZ-16-5-P-A compact cylinder is engineered for precise and reliable operation, ensuring consistent performance in various applications.
2
Elastic Silencer RingsEquipped with elastic silencer rings, this cylinder reduces noise and vibrations, providing a smoother operation and longer lifespan.
3
Optional Mounting PositionThe cylinder offers an optional mounting position, allowing for flexible installation and easier integration into different systems.
4
High-Quality MaterialsConstructed from high-alloyed stainless steel for the piston rod and aluminium wrought alloy for the cylinder tube, this cylinder ensures durability and resistance to corrosion.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

1mm 25mm

Piston diameter

16 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Single-acting Pulling

Piston rod end

Internal thread

Compressed Air CompatibilityDesigned to operate with compressed air to ISO 8573-1:2010 [7:4:4], this cylinder is ideal for a wide range of pneumatic applications, including automation and manufacturing processes.

Position sensing

For proximity sensor

Symbol

00991204

Variants

Piston rod at one end

Operating pressure

18.85psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.1J

Theoretical force at 6 bar, advancing

81N

Moving mass at 0 mm stroke

12g

Additional moving mass per 10 mm stroke

Basic weight with 0 mm stroke

89g

Additional weight per 10 mm stroke

15g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

High-alloy stainless steel

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

156461
