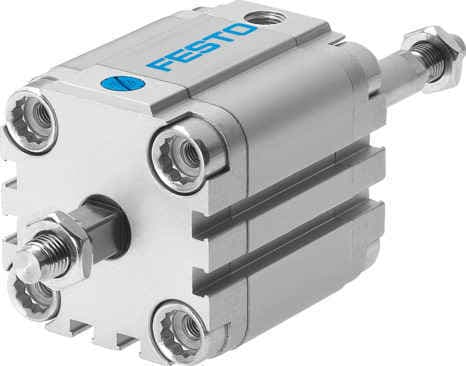

Precision ActuationThe Festo AEVULQ-63-A-P-A-S2 compact cylinder ensures precise movement and control, making it ideal for applications requiring high accuracy.
2
Flexible CushioningEquipped with flexible cushioning rings/plates at both ends, this cylinder reduces shock and vibration, extending its lifespan and improving performance.
3
Anti-Rotation ProtectionThe square piston rod provides anti-rotation protection, ensuring the cylinder operates smoothly and securely, even in demanding conditions.
4
Proximity SensingDesigned for proximity sensing, this cylinder allows for precise position detection, enhancing automation and control in various industrial processes.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
1mm 25mm
Piston diameter
63 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Single-acting
Piston rod end
External thread
Durability and Corrosion ResistanceConstructed from high-quality materials like high-alloy steel for the piston rod and wrought aluminum alloy for the cylinder barrel, this cylinder offers excellent durability and moderate corrosion resistance (CRC 2), making it suitable for a wide range of environments.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991202
Variants
Through piston rod
Protection against torsion/guide
Square piston rod
Operating pressure
14.5psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
