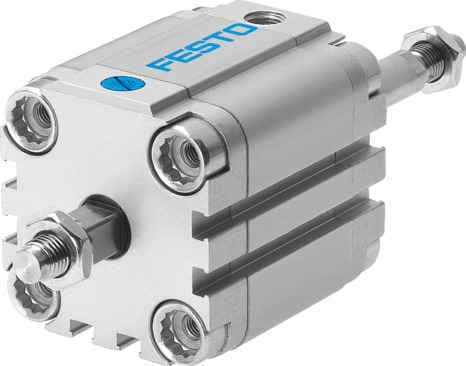

Festo AEVULQ-50- -A-P-A-S2: Compact, single-acting cylinder with 50mm piston diameter, elastic cushioning, and optional mounting. Suitable for compressed air operations.
Product Modelaevulq-50- -a-p-a-s2
Material Number156376
Product ID3628
Stock on Request
Last updated: 8/29/2026
Key Features
1
Elastic Cushioning Rings/PlatesThe AEVULQ-50- -A-P-A-S2 features elastic cushioning rings/plates at both ends, ensuring smooth operation and reducing wear and tear.
2
Optional Mounting PositionThe cylinder allows for optional mounting positions, providing flexibility in installation and integration into various systems.
3
Robust DesignConstructed with high-alloy steel piston rod and wrought aluminum alloy cylinder barrel, ensuring durability and longevity.
4
Position Detection via Proximity SwitchEquipped with position detection via proximity switch, facilitating precise control and monitoring of the cylinder's operation.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
1mm 25mm
Piston diameter
50 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Single-acting
Piston rod end
External thread
Wide Operating Pressure RangeCompatible with operating pressures ranging from 0.12 MPa to 1 MPa (1.2 bar to 10 bar), making it suitable for a variety of industrial applications.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991202
Variants
Through piston rod
Protection against torsion/guide
Square piston rod
Operating pressure
17.4psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
