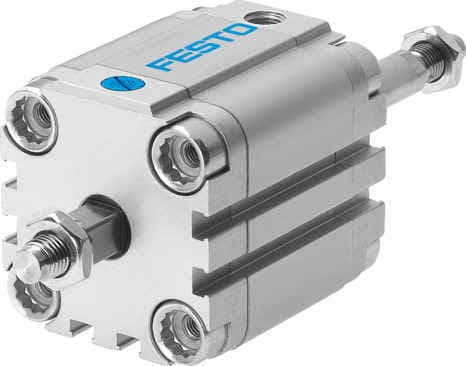

The Festo AEVULQ-40-A-P-A-S2 compact cylinder offers flexible cushioning, proximity sensing, and versatile mounting options, making it perfect for demanding industrial applications.
Product Modelaevulq-40- -a-p-a-s2
Material Number156375
Product ID3627
Stock on Request
Last updated: 8/29/2026
Key Features
1
Flexible CushioningThe AEVULQ-40-A-P-A-S2 features elastic cushioning rings/plates at both ends, ensuring smooth operation and reducing wear and tear on the cylinder.
2
Proximity SensingEquipped with proximity sensing capabilities, this cylinder allows for precise position detection, enhancing control and accuracy in your applications.
3
Versatile Mounting OptionsThe cylinder can be mounted via through-holes, female threads, or accessories, providing flexibility in installation and integration into various systems.
4
High-Performance OperationDesigned for demanding industrial environments, the AEVULQ-40-A-P-A-S2 operates efficiently under a wide range of pressures (0.1 MPa to 1 MPa) and temperatures (-20°C to 80°C).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
1mm 25mm
Piston diameter
40 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Single-acting
Piston rod end
External thread
5
Corrosion ResistanceWith a corrosion resistance class of CRC 2, this cylinder is suitable for applications where moderate corrosion stress is expected, ensuring durability and longevity.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991202
Variants
Through piston rod
Protection against torsion/guide
Square piston rod
Operating pressure
17.4psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
