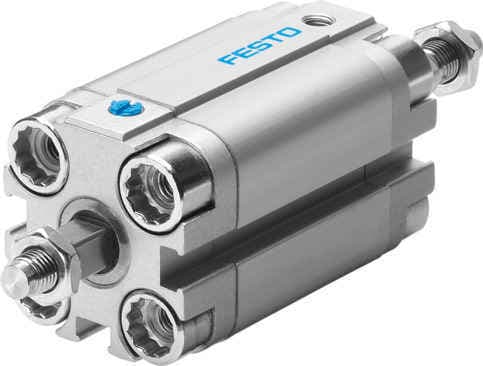

Short Description: The Festo ADVU-20- -A-P-A-S2 is a versatile, double-acting compact cylinder with elastic cushioning, suitable for a wide range of industrial applications.
Product Modelaevulq-20- -a-p-a-s2
Material Number156372
Product ID3624
Stock on Request
Last updated: 8/29/2026
Key Features
1
Compact Design and VersatilityThe ADVU-20- -A-P-A-S2 features a compact design with a stroke range of 1 mm to 200 mm, making it versatile for various industrial applications. Its small footprint allows for easy integration into tight spaces.
2
Elastic Cushioning for Smooth OperationEquipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear, extending its lifespan.
3
High Precision and ReliabilityDesigned for high precision, the ADVU-20- -A-P-A-S2 provides reliable performance in demanding industrial environments. Its robust construction ensures consistent operation.
4
Optional Mounting PositionsThe cylinder offers optional mounting positions, allowing for flexibility in installation. Whether through-hole or with accessories, it can be easily integrated into your system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
1mm 25mm
Piston diameter
20 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Single-acting
Piston rod end
External thread
5
Compliant with Industry StandardsThe ADVU-20- -A-P-A-S2 meets the standards for compressed air quality (ISO 8573-1:2010 [7:4:4]) and corrosion resistance (CRC 2). It also conforms to LABS (PWIS) and VDMA24364-B1/B2-L, ensuring compliance with industry norms.
6
Position Detection via Proximity SwitchThe cylinder is equipped with a proximity switch for position detection, providing accurate feedback and enhancing control over the system. This feature ensures precise movement and operation.
7
Operating Pressure RangeThe ADVU-20- -A-P-A-S2 operates within a pressure range of 0.12 MPa to 1 MPa (1.2 bar to 10 bar), offering flexibility in system design and operation. It can handle various loads with ease.
8
Material QualityConstructed from high-quality materials, including galvanized steel for collar screws, wrought aluminum alloy for the cover, and high-alloy stainless steel for the piston rod, this cylinder ensures durability and resistance to corrosion.
9
Impact Energy ControlThe cylinder is designed to manage impact energy in end positions effectively, reducing the risk of damage and ensuring smooth operation even under dynamic conditions.
10
Lubricated Operation OptionThe ADVU-20- -A-P-A-S2 supports lubricated operation, which is always required when used. This feature enhances the longevity of the cylinder and reduces maintenance needs.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991202
Variants
Through piston rod
Protection against torsion/guide
Square piston rod
Operating pressure
21.75psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
