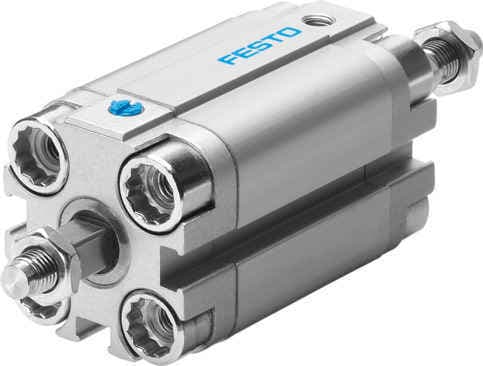

aevulq-16- -a-p-a-s2

Name: aevulq-16- -a-p-a-s2
Brand: FESTO
SKU: aevulq-16- -a-p-a-s2

Short Product Description: The Festo ADVU-16- -A-P-A-S2 compact cylinder features a 16mm piston diameter, double-acting operation, and elastic cushioning rings for smooth performance. It is suitable for a variety of industrial applications and can operate with compressed air to ISO 8573-1:2010 standards.

Product Modelaevulq-16- -a-p-a-s2

Material Number156371

Product ID3623

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Reliable Double-Acting OperationThe Festo ADVU-16- -A-P-A-S2 operates in a double-acting mode, ensuring consistent and reliable performance in both forward and return strokes.
2
Elastic Cushioning RingsEquipped with elastic cushioning rings at both ends, this cylinder provides smooth and controlled motion, reducing wear and tear on the system.
3
Wide Operating Pressure RangeThis compact cylinder can operate within a wide range of pressures (0.13 MPa to 1 MPa), making it versatile for various industrial applications.
4
Optional Mounting PositionsThe ADVU-16- -A-P-A-S2 offers optional mounting positions, allowing for flexible installation in different settings and configurations.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

1mm 25mm

Piston diameter

16 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Single-acting

Piston rod end

External thread

High-Quality MaterialsConstructed with high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, this product ensures durability and resistance to corrosion.

Position Detection via Proximity SwitchThe cylinder is equipped with position detection via a proximity switch, providing accurate and reliable position feedback for precise control.

Compliance with ISO StandardsDesigned to operate with compressed air to ISO 8573-1:2010 standards, ensuring compatibility with a wide range of pneumatic systems.

Corrosion Resistance Class CRC 2With a corrosion resistance class of CRC 2, this cylinder is designed to withstand moderate corrosion stress, making it suitable for various industrial environments.

Impact Energy in End PositionsThe ADVU-16- -A-P-A-S2 has an impact energy of 0.1 J in end positions, ensuring controlled motion and reducing the risk of damage to the system.

Theoretical Forces at 6 BarThe theoretical force at 6 bar is 90 N for the return stroke and 90 N for the advance stroke, providing consistent and reliable performance under various operating conditions.

Position sensing

For proximity sensor

Symbol

00991202

Variants

Through piston rod

Protection against torsion/guide

Square piston rod

Operating pressure

21.75psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.1J

Theoretical force at 6 bar, advancing

81N

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

High-alloy stainless steel

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

156371
