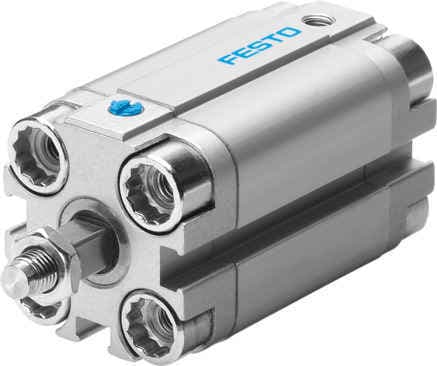

High PerformanceThe Festo AEVULQ-16- -A-P-A compact cylinder is engineered for high-performance pneumatic applications, ensuring reliable and efficient operation in various industrial settings.
2
Flexible CushioningEquipped with flexible cushioning rings/plates at both ends, this cylinder provides smooth and controlled motion, reducing wear and tear on the system.
3
Proximity SensingFeaturing proximity sensing capabilities, the AEVULQ-16- -A-P-A allows for precise position detection, enhancing the accuracy and reliability of your automation processes.
4
Versatile MountingWith an optional mounting position, this compact cylinder can be easily integrated into various systems, offering flexibility in design and installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
1mm 25mm
Piston diameter
16 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Pushing Single-acting
Piston rod end
External thread
5
Corrosion ResistanceConstructed with high-quality materials, including high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, the AEVULQ-16- -A-P-A offers moderate corrosion resistance, ensuring durability in demanding environments.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991729
Variants
Piston rod at one end
Protection against torsion/guide
Square piston rod
Operating pressure
21.75psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
