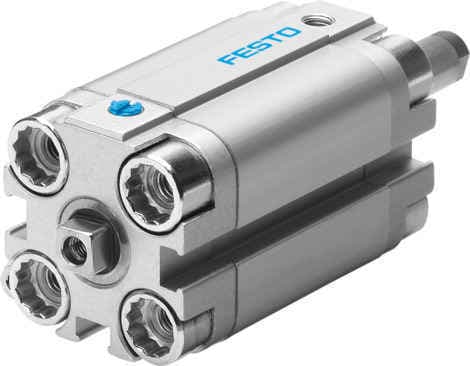

Festo AEVULQ-16-P-A-S2: Compact air cylinder with 16mm piston diameter, elastic cushioning, and optional mounting positions. Perfect for precise and flexible applications.
Product Modelaevulq-16- -p-a-s2
Material Number156331
Product ID3604
Stock on Request
Last updated: 8/29/2026
Key Features
1
High Precision and FlexibilityThe Festo AEVULQ-16-P-A-S2 air cylinder offers precise control and flexibility, making it suitable for a wide range of industrial applications. Its elastic cushioning rings ensure smooth operation and minimize wear and tear.
2
Compact DesignDesigned for space efficiency, the AEVULQ-16-P-A-S2 is ideal for applications where compactness is crucial. Its compact size allows for easy integration into various systems without compromising performance.
3
Elastic CushioningEquipped with elastic cushioning rings at both ends, this cylinder provides a smooth and consistent motion. This feature reduces the impact on the system, ensuring longer lifespan and better performance.
4
Optional Mounting PositionsThe AEVULQ-16-P-A-S2 offers optional mounting positions, allowing for greater flexibility in system design. This feature makes it easier to integrate the cylinder into different setups, enhancing its versatility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
1mm 25mm
Piston diameter
16 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Single-acting
Piston rod end
Internal thread
5
Reliability and DurabilityBuilt with high-quality materials and designed for reliability, the Festo AEVULQ-16-P-A-S2 air cylinder ensures consistent performance over time. Its durable construction withstands various operating conditions, making it a reliable choice for industrial applications.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991202
Variants
Through piston rod
Protection against torsion/guide
Square piston rod
Operating pressure
21.75psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
0.1J
Theoretical force at 6 bar, advancing
81N
Type of mounting
Optionally: With through-hole With accessories
Pneumatic connection
M5
Flange screws material
High-alloy stainless steel
Cover material
Wrought aluminum alloy
Material of dynamic seals
NBR TPE-U(PU)
Piston rod material
High-alloy stainless steel
Material of cylinder barrel
Wrought aluminum alloy
Manufacturer ID
156331
