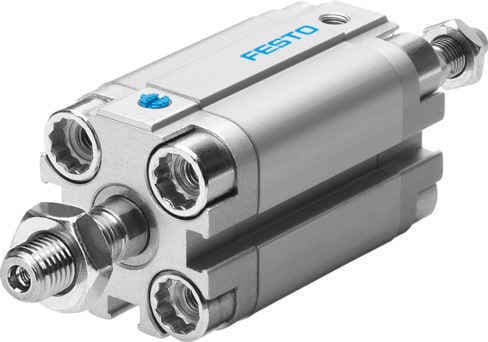

Festo AEVU-16-A-P-A-S20: High-precision, double-acting compact cylinder with 16mm piston diameter, 1-10mm stroke length, and up to 10 bar operating pressure. Ideal for industrial applications.

Product Modelaevu-16- -a-p-a-s20

Material Number156281

Product ID3576

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
High Precision and DurabilityThe Festo AEVU-16-A-P-A-S20 is engineered to provide high precision and durability, making it a reliable choice for demanding industrial applications. Its robust construction ensures consistent performance over time.
2
Compact DesignWith a compact design, this cylinder is perfect for space-constrained environments. Its dimensions (approximately 35.5 x 35.5 x 62.5 mm) make it easy to integrate into various systems without taking up too much space.
3
Double-Acting OperationThe AEVU-16-A-P-A-S20 operates in a double-acting mode, allowing for both extension and retraction strokes. This versatility makes it suitable for a wide range of applications, from assembly to disassembly tasks.
4
Operating PressureThis compact cylinder can operate at pressures up to 10 bar, making it suitable for various industrial processes that require high pressure. The operating pressure range ensures flexibility in different application scenarios.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

1mm 25mm

Piston diameter

16 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Single-acting

Piston rod end

External thread

Corrosion ResistanceThe Festo AEVU-16-A-P-A-S20 is designed with corrosion-resistant materials, ensuring it can withstand the harsh conditions often found in industrial environments. This feature extends the lifespan of the cylinder and reduces maintenance needs.

Material QualityThe cylinder is made from high-quality materials, including high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cover. These materials contribute to the cylinder's durability and resistance to corrosion.

Pneumatic ConnectionThe AEVU-16-A-P-A-S20 features a pneumatic connection of M5, which is a standard size for many pneumatic systems. This compatibility ensures easy integration with existing infrastructure, reducing setup time and costs.

Ambient Temperature RangeThe cylinder operates within an ambient temperature range of -20°C to 80°C, making it suitable for a variety of industrial settings. This broad temperature range ensures the cylinder can perform effectively in different environmental conditions.

Impact EnergyThe AEVU-16-A-P-A-S20 has an impact energy of 0.01 J in the end positions, which is a critical factor in applications where precise control is required. This low impact energy helps in minimizing wear and tear on the cylinder and its components.

Mounting FlexibilityThe cylinder can be mounted via through-holes or with accessories, providing flexibility in terms of installation. This versatility allows users to choose the most suitable mounting method based on their specific application needs.

1Position DetectionThe AEVU-16-A-P-A-S20 supports position detection via proximity switches, enabling precise control over the cylinder's movement. This feature is particularly useful in applications where accurate positioning is crucial.

1Conforms to StandardsThe Festo AEVU-16-A-P-A-S20 conforms to ISO 1179-1 and ISO 228-1 standards, ensuring it meets the required specifications for pneumatic cylinders. This conformity provides assurance of quality and reliability.

1Operating MediumThe cylinder operates with compressed air in accordance with ISO 8573-1:2010 [7:4:4], which specifies the quality of compressed air used in pneumatic systems. This ensures the cylinder functions optimally with filtered compressed air.

1Cushioning RingsThe AEVU-16-A-P-A-S20 features elastic cushioning rings at both ends, which help in reducing the impact of the piston during its movement. This cushioning mechanism contributes to the cylinder's smooth operation and longevity.

1Maintenance-Friendly DesignThe design of the AEVU-16-A-P-A-S20 is maintenance-friendly, allowing for easy replacement of wearing parts. This feature reduces downtime and extends the overall lifespan of the cylinder.

1Compatibility with AccessoriesThe cylinder is compatible with various accessories, including through-holes and internal female threads. This compatibility ensures that users can easily integrate the cylinder with other components of their system.

1Wide Application RangeThe Festo AEVU-16-A-P-A-S20 is suitable for a wide range of industrial applications, including assembly, packaging, and material handling. Its versatility makes it an ideal choice for various industries that require precise and reliable pneumatic solutions.

1Corrosion Resistance ClassThe cylinder has a corrosion resistance class of CRC 2, which indicates moderate corrosion stress. This classification ensures the cylinder can withstand the corrosive conditions often found in industrial environments.

1Operating Pressure RangeThe AEVU-16-A-P-A-S20 operates within a pressure range of 1.3 bar to 10 bar, providing flexibility in different application scenarios. This range ensures the cylinder can handle various pressure requirements without compromising its performance.

20. Material SealsThe cylinder uses TPE-U (PUR) material seals, which are known for their durability and resistance to chemicals. These seals contribute to the cylinder's overall reliability and longevity.

2Piston Rod MaterialThe piston rod of the AEVU-16-A-P-A-S20 is made from high-alloy stainless steel, ensuring high strength and resistance to corrosion. This material choice enhances the cylinder's durability and performance.

2Cushioning MechanismThe elastic cushioning rings at both ends of the piston help in reducing the impact during its movement. This cushioning mechanism contributes to the smooth operation and longevity of the cylinder.

2Position Sensing CapabilityThe cylinder supports position sensing via proximity switches, enabling precise control over its movement. This feature is particularly useful in applications where accurate positioning is crucial.

2Mounting OptionsThe AEVU-16-A-P-A-S20 can be mounted via through-holes or with accessories, providing flexibility in terms of installation. This versatility allows users to choose the most suitable mounting method based on their specific application needs.

2Compliance with StandardsThe Festo AEVU-16-A-P-A-S20 conforms to ISO 1179-1 and ISO 228-1 standards, ensuring it meets the required specifications for pneumatic cylinders. This conformity provides assurance of quality and reliability.

2Operating Medium CompatibilityThe cylinder operates with compressed air in accordance with ISO 8573-1:2010 [7:4:4], which specifies the quality of compressed air used in pneumatic systems. This ensures the cylinder functions optimally with filtered compressed air.

2Maintenance-Friendly Design FeaturesThe design of the AEVU-16-A-P-A-S20 is maintenance-friendly, allowing for easy replacement of wearing parts. This feature reduces downtime and extends the overall lifespan of the cylinder.

2Compatibility with Accessories and Mounting OptionsThe cylinder is compatible with various accessories, including through-holes and internal female threads. This compatibility ensures that users can easily integrate the cylinder with other components of their system.

2Wide Application Range in Various IndustriesThe Festo AEVU-16-A-P-A-S20 is suitable for a wide range of industrial applications, including assembly, packaging, and material handling. Its versatility makes it an ideal choice for various industries that require precise and reliable pneumatic solutions.

30. Corrosion Resistance Class and Operating Pressure RangeThe cylinder has a corrosion resistance class of CRC 2, indicating moderate corrosion stress. It operates within a pressure range of 1.3 bar to 10 bar, providing flexibility in different application scenarios.

3Material Seals and Piston Rod MaterialThe cylinder uses TPE-U (PUR) material seals, which are known for their durability and resistance to chemicals. The piston rod is made from high-alloy stainless steel, ensuring high strength and resistance to corrosion.

3Cushioning Mechanism and Position Sensing CapabilityThe elastic cushioning rings at both ends of the piston help in reducing the impact during its movement. The cylinder supports position sensing via proximity switches, enabling precise control over its movement.

3Mounting Options and Compliance with StandardsThe AEVU-16-A-P-A-S20 can be mounted via through-holes or with accessories, providing flexibility in terms of installation. It conforms to ISO 1179-1 and ISO 228-1 standards, ensuring it meets the required specifications for pneumatic cylinders.

Feature3Operating Medium Compatibility and Maintenance-Friendly Design Features: The cylinder operates with compressed air in accordance with ISO 8573-1:2010 [7:4:4], ensuring optimal functionality with filtered compressed air. The design is maintenance-friendly, allowing for easy replacement of wearing parts.

Feature3Compatibility with Accessories and Mounting Options, Wide Application Range in Various Industries: The cylinder is compatible with various accessories, including through-holes and internal female threads. It is suitable for a wide range of industrial applications, including assembly, packaging, and material handling.

Feature3Corrosion Resistance Class, Operating Pressure Range, Material Seals, Piston Rod Material, Cushioning Mechanism, Position Sensing Capability, Mounting Options, Compliance with Standards, Operating Medium Compatibility, Maintenance-Friendly Design Features: The cylinder has a corrosion resistance class of CRC 2, operates within a pressure range of 1.3 bar to 10 bar, uses TPE-U (PUR) material seals, and features a high-alloy stainless steel piston rod. It includes elastic cushioning rings for smooth operation and supports position sensing via proximity switches. It can be mounted via through-holes or with accessories and conforms to ISO standards. It operates with compressed air and has a maintenance-friendly design.

Position sensing

For proximity sensor

Symbol

00991203

Variants

Through, hollow piston rod

Operating pressure

18.85psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.01J

Theoretical force at 6 bar, advancing

81N

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

High-alloy stainless steel

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

156281
