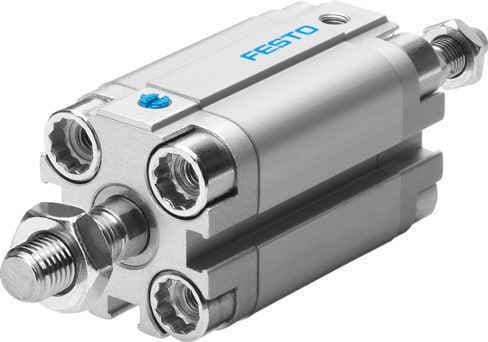

Double-Acting OperationThe ADVU-20- -A-P-A-S2 operates in both directions, allowing for precise control and efficient movement in various applications.
2
Elastic CushioningEquipped with elastic cushioning rings/pads at both ends, this cylinder ensures smooth and controlled movement, reducing wear and tear on the system.
3
Wide Operating Pressure RangeThe cylinder operates at pressures ranging from 0.12 MPa to 1 MPa (1.2 bar to 10 bar), making it adaptable to a variety of applications and environments.
4
High-Quality MaterialsConstructed with high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, this cylinder offers durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
1mm 25mm
Piston diameter
20 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Single-acting
Piston rod end
External thread
5
Position Sensing CapabilityThe ADVU-20- -A-P-A-S2 is designed for position sensing via proximity sensors, enabling precise control and monitoring of the cylinder’s movement.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991202
Variants
Through piston rod
Operating pressure
17.4psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
