aevu-25- -a-p-a

Name: aevu-25- -a-p-a
Brand: FESTO
SKU: aevu-25- -a-p-a

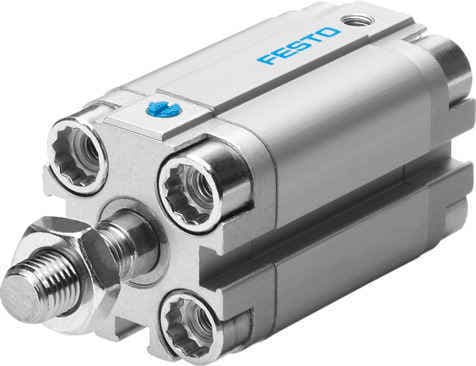

Short Product Description: The Festo AEVU-25-10-P-A compact cylinder features a 25mm piston diameter and 10mm stroke, offering elastic cushioning and optional mounting positions. Suitable for single-acting applications, it ensures efficient operation with compressed air.

Product Modelaevu-25- -a-p-a

Material Number156263

Product ID3558

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Precision DesignThe Festo AEVU-25-10-P-A compact cylinder is designed with precision in mind, ensuring consistent performance and reliability in your pneumatic systems.
2
Elastic CushioningEquipped with elastic cushioning rings/plates at both ends, this cylinder reduces wear and tear, extending its lifespan and maintaining smooth operation.
3
Optional Mounting PositionsThe cylinder offers optional mounting positions, providing flexibility in installation and integration into various applications.
4
Single-Acting OperationIdeal for single-acting applications, this cylinder is perfect for pushing mode operations, making it a versatile choice for a wide range of pneumatic tasks.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

1mm 25mm

Piston diameter

25 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Pushing Single-acting

Piston rod end

External thread

Compressed Air OperationOperating with compressed air to ISO 8573-1:2010 [7:4:4], this cylinder ensures efficient and reliable operation in a variety of industrial settings.

Corrosion ResistanceFeaturing a corrosion resistance class of CRC 2 - Moderate corrosion stress, this cylinder is designed to withstand moderate environmental conditions, ensuring durability in harsh industrial environments.

Position DetectionEquipped with position detection via proximity switch, this cylinder provides accurate positioning and control, enhancing the precision of your pneumatic systems.

Material QualityConstructed with high-quality materials including galvanized steel collar screws, wrought aluminum alloy cover, and high-alloy stainless steel piston rod, this cylinder ensures robustness and longevity.

Operating Pressure RangeOperating within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar), this cylinder can handle various operating pressures, making it adaptable to different application requirements.

Impact EnergyWith an impact energy of 0.1 J in end positions, this cylinder is designed to handle moderate impacts, ensuring reliable operation even in dynamic environments.

1Technical SupportBacked by free lifetime technical support, you can rely on Festo’s expertise to ensure optimal performance and troubleshooting assistance for your AEVU-25-10-P-A compact cylinder.

1Conformity to StandardsConforming to LABS (PWIS) standards and VDMA24364-B1/B2-L, this cylinder meets industry standards for safety and performance, providing peace of mind in your pneumatic system design.

1Ambient Temperature RangeOperating within an ambient temperature range of -20°C to 80°C, this cylinder can handle a wide range of environmental conditions, making it suitable for various industrial applications.

1Pneumatic ConnectionFeaturing a pneumatic connection of M5, this cylinder ensures easy integration into your existing pneumatic setup, minimizing installation time and effort.

1Additional FeaturesAdditional features include lubricated operation, which is always required if used, ensuring smooth and efficient operation of the cylinder. The cylinder also supports various accessories and mounting options, enhancing its versatility in different applications.

Position sensing

For proximity sensor

Symbol

00991729

Variants

Piston rod at one end

Operating pressure

14.5psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.1J

Theoretical force at 6 bar, advancing

269N

Moving mass at 0 mm stroke

26g

Additional moving mass per 10 mm stroke

Basic weight with 0 mm stroke

180g

Additional weight per 10 mm stroke

28g

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

Steel, galvanized

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

156263
