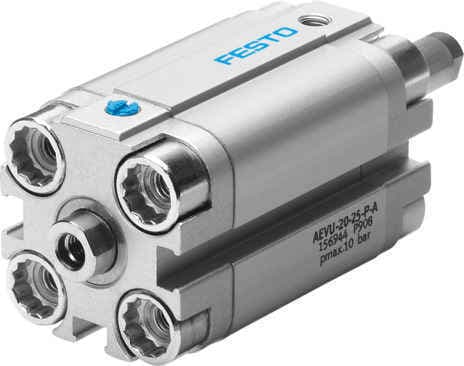

The Festo AEVU-16- -P-A-S2 is a versatile, compact pneumatic cylinder designed for reliable performance. With a stroke range of 1 mm to 200 mm and a piston diameter of 16 mm, it offers flexible operation and easy integration into your system.

Product Modelaevu-16- -p-a-s2

Material Number156231

Product ID3535

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Compact Design and FlexibilityThe AEVU-16- -P-A-S2 offers a stroke range of 1 mm to 200 mm, making it suitable for a variety of applications. Its compact design ensures easy integration into your system, saving space and enhancing efficiency.
2
Elastic Cushioning for Smooth OperationEquipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear. This feature enhances the overall performance and longevity of the cylinder.
3
High Corrosion ResistanceThe AEVU-16- -P-A-S2 features a corrosion resistance class of CRC 2, indicating moderate corrosion stress. This makes it suitable for use in environments where exposure to moisture or chemicals is a concern.
4
Double-Acting OperationDesigned for double-acting operation, this cylinder can be used in both pushing and pulling applications. This versatility makes it a valuable component in various industrial settings.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Stroke

1mm 25mm

Piston diameter

16 mm

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Single-acting

Piston rod end

Internal thread

Optional Mounting PositionsThe cylinder offers optional mounting positions, allowing for greater flexibility in installation. This feature ensures that the cylinder can be integrated into your system in the most efficient manner possible.

Position Detection via Proximity SwitchThe AEVU-16- -P-A-S2 includes position detection via a proximity switch, providing accurate and reliable feedback on the cylinder's position. This feature enhances control and precision in your applications.

Operating Pressure RangeThe cylinder operates within a pressure range of 0.13 MPa to 1 MPa (1.3 bar to 10 bar), making it compatible with a wide range of pneumatic systems. This flexibility ensures that the cylinder can be used in various industrial settings without requiring additional adjustments.

Material QualityConstructed with high-quality materials, including high-alloy stainless steel for the piston rod and wrought aluminium alloy for the cylinder barrel, the AEVU-16- -P-A-S2 ensures durability and resistance to wear. The dynamic seals are made from NBR or TPE-U(PU), providing reliable sealing performance.

Ambient Temperature RangeThe cylinder operates within an ambient temperature range of -20 °C to 80 °C, making it suitable for use in a variety of environments. This broad temperature range ensures that the cylinder can perform reliably under different conditions.

Impact Energy in End PositionsThe AEVU-16- -P-A-S2 has an impact energy of 0.1 J in the end positions, which helps in reducing the shock and stress on the cylinder during operation. This feature contributes to the overall reliability and longevity of the cylinder.

1Theoretical Force at Operating PressureAt an operating pressure of 0.6 MPa (6 bar, 87 psi), the theoretical force on the return stroke is 90 N, and on the advance stroke is 90 N. This consistent force ensures predictable performance in your applications.

1Type of Mounting and Pneumatic ConnectionThe cylinder can be mounted either with a through-hole or using accessories, and it features a pneumatic connection of M5. This versatility in mounting options and connection types enhances the flexibility of the cylinder in various applications.

1Material Compliance and CertificationsThe AEVU-16- -P-A-S2 complies with LABS (PWIS) conformity and VDMA24364-B1/B2-L, ensuring that it meets stringent standards for performance and safety. Additionally, it carries the CE mark, certifying that it meets the requirements of one or more of the EU directives.

1Lubricated OperationThe cylinder supports lubricated operation, which is always required when using lubrication. This feature helps in reducing wear and tear, ensuring smoother operation and longer lifespan of the cylinder.

1Operating MediumThe AEVU-16- -P-A-S2 operates with compressed air to ISO 8573-1:2010 [7:4:4], ensuring that it meets the standards for air quality in pneumatic systems. This ensures reliable performance and consistent operation in various industrial settings.

Position sensing

For proximity sensor

Symbol

00991202

Variants

Through piston rod

Operating pressure

18.85psi 145psi

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20°C 80°C

Impact energy in the end positions

0.1J

Theoretical force at 6 bar, advancing

81N

Type of mounting

Optionally: With through-hole With accessories

Pneumatic connection

Flange screws material

High-alloy stainless steel

Cover material

Wrought aluminum alloy

Material of dynamic seals

NBR TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

Wrought aluminum alloy

Manufacturer ID

156231
