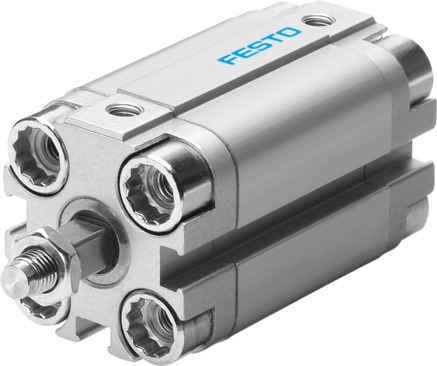

Festo ADVU-20-20-A-P-A-S6: High-precision compact cylinder with 20 mm piston diameter, 1-200 mm stroke, flexible cushioning, and proximity sensing. Compatible with compressed air.
Product Modeladvulq-20- -a-p-a-s6
Material Number156192
Product ID3496
Stock on Request
Last updated: 8/29/2026
Key Features
1
High Precision and DurabilityThe Festo ADVU-20-20-A-P-A-S6 compact cylinder is engineered for high precision and durability, ensuring reliable performance in demanding applications.
2
Flexible CushioningEquipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear, extending its lifespan.
3
Proximity SensingDesigned for proximity sensing, this cylinder allows for precise position detection, making it ideal for applications requiring accurate control.
4
Wide Operating RangeCompatible with compressed air according to ISO 8573-1:2010, this cylinder operates within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar), making it versatile for various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
1mm 200mm
Piston diameter
20 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Double-acting
Piston rod end
External thread
5
Corrosion ResistanceFeaturing a corrosion resistance class of CRC 2, this cylinder is designed to withstand moderate corrosion stress, ensuring it remains functional in industrial environments.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991217
Variants
Heat-resistant seals max. 120°C
Protection against torsion/guide
Square piston rod
Operating pressure
14.5psi 87psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
