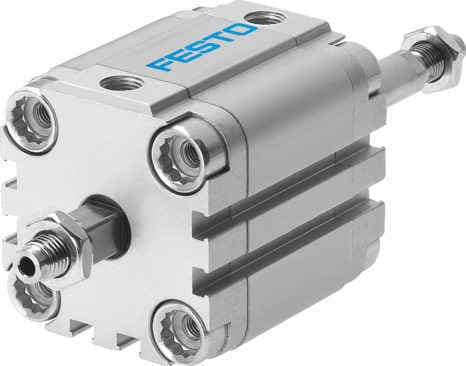

Flexible CushioningDescription: The ADVULQ-50-A-P-A-S20 features elastic cushioning rings/plates at both ends, providing a smooth and controlled motion, reducing wear and tear on the cylinder and its components.
2
Proximity SensingDescription: Equipped with a proximity switch, this cylinder allows for precise position detection, ensuring accurate control and minimizing the risk of over-travel or under-travel.
3
Double-Acting OperationDescription: Designed for double-acting operations, the ADVULQ-50-A-P-A-S20 can handle both advancing and retracting strokes, making it versatile for a wide range of applications.
4
High Operating PressureDescription: With an operating pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar), this cylinder can handle demanding industrial conditions, ensuring consistent performance under various loads.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
1mm 300mm
Piston diameter
50 mm
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Mode of operation
Double-acting
Piston rod end
External thread
5
Corrosion ResistanceDescription: Classified as CRC 2, the ADVULQ-50-A-P-A-S20 offers moderate corrosion resistance, making it suitable for applications in environments with moderate exposure to corrosive substances.
Structural design
Piston Piston rod
Position sensing
For proximity sensor
Symbol
00991218
Variants
Through, hollow piston rod
Protection against torsion/guide
Square piston rod
Operating pressure
14.5psi 145psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
